P35-4250-3
Marconi Optical Components
GaAs MMIC SP4T Reflective
Switch, DC - 2GHz
Features
路
路
路
路
路
Broadband performance
Low insertion loss; 0.7dB typ at 1GHz
Ultra low DC power consumption
Fast switching speed; 3ns typical
SO16 surface mount package
Description
The P35-4250-3 is a high performance Gallium Arsenide single pole four throw RF switch. It is suitable for use in
broadband communications and instrumentation applications. A short circuit reflective termination is presented at the
isolated outputs of the switch. The switch is controlled by the application of complimentary 0V/-5V or 0/-8V signals to the

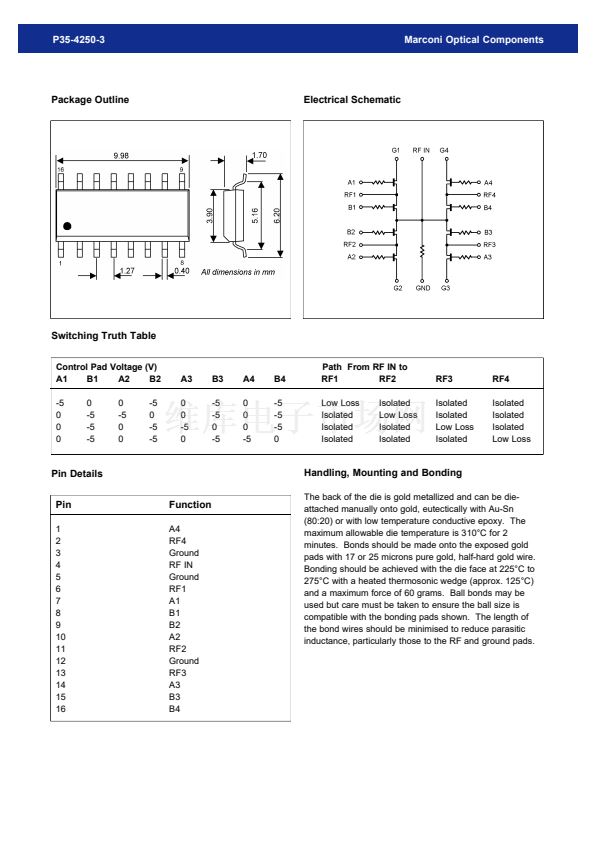

control lines in accordance with the truth table below.
This die is fabricated using MOC's 0.5碌m gate length MESFET process (S20) and is fully protected using Silicon Nitride
passivation for excellent performance and reliability. This device is packaged in a low-cost surface-mount plastic
package.
Electrical Performance
Ambient temperature = 22鹵3擄C, ZO = 50鈩? Control voltages = 0V/-5V unless otherwise stated
Parameter
Insertion Loss1
Isolation1
Input Return Loss2
Output Return Loss2
1dB power compression point3
Conditions
DC - 1GHz
1 - 2GHz
DC - 1GHz
1 - 2GHz
DC - 1GHz
1 - 2GHz
DC - 1GHz
1 - 2GHz
0/-5V Control; 50MHz
0/-5V Control; 2GHz
0/-8V Control; 50MHz
0/-8V Control; 2GHz
50% Control to 10%90%RF
Min
-
-
26
16
21
14
21
14
-
-
-
-
-
Typ
0.7
0.9
28
20
28
25
28
22
19
22.5
21.5
30
3
Max
0.9
1.1
-
-
-
-
-
-
-
-
-
-
-
Units
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
ns
Switching Speed
Notes
1. Insertion Loss and Isolation measured between RF input and any output.
2. Return Loss measured in low loss switch state.
3. Input power at which insertion loss compresses by 1dB.
1
2
3
4
