OZ2206

Short Form Datasheet

Dual-Slot Serial PCMCIA/CardBus Power Controller

FEATURES

鈥?/div>

Complete VCC and VPP switch for dual-slot PC Card

interface

Standard 3-wire serial interface compatible with

CardBus Controllers

High-efficiency, low-resistance switches

Meets PC Card standard

Compatible with 3.3V, 5V and 12V PC Cards

Operates in 3.3V low voltage mode when 3.3V is the

only available input voltage

Current limit and over temperature shutdown

12V supply can be disabled except during 12V Flash

memory programming

Break-before-make switching

Low on-resistance for 5V Vcc

Low on-resistance for 3.3V Vcc

GENERAL DESCRIPTION

The OZ2206 is a dual slot PCMCIA (Personal Computer

Memory Card International Association) PC Card and

CardBus power controller. It is used in conjunction with a

serial data output, CardBus controller to control and

distribute Vcc and Vpp voltages to two PC Card slots.

When connected to 3.3V, 5V, and 12V system power

supplies, the OZ2206 can switch its Vcc and Vpp outputs

between 0V, 3.3V, and 5.0V, in accordance with the control

commands from the three-wire serial interface. The

OZ2206 also features low on-resistance MOSFET switches

for 5V and 3.3V Vcc.

The OZ2206 operation does not require 12V and 5V

supplies, making it possible to operate the PC cards in low-

power 3.3V modes. The internal logic and the MOSFET

drive circuitry are powered by the 3V supply input.

The OZ2206 is protected by over temperature shutdown,

and it protects itself and the system with current limiting

and cross-conduction lockout.

The OZ2206 is designed for full compatibility with the

PCMCIA PC Card Specification, including the CardBus and

Zoomed Video (ZV) options, and is pin-to-pin compatible

with Texas Instrument鈥檚 TPS2206/2216.

ORDERING INFORMATION

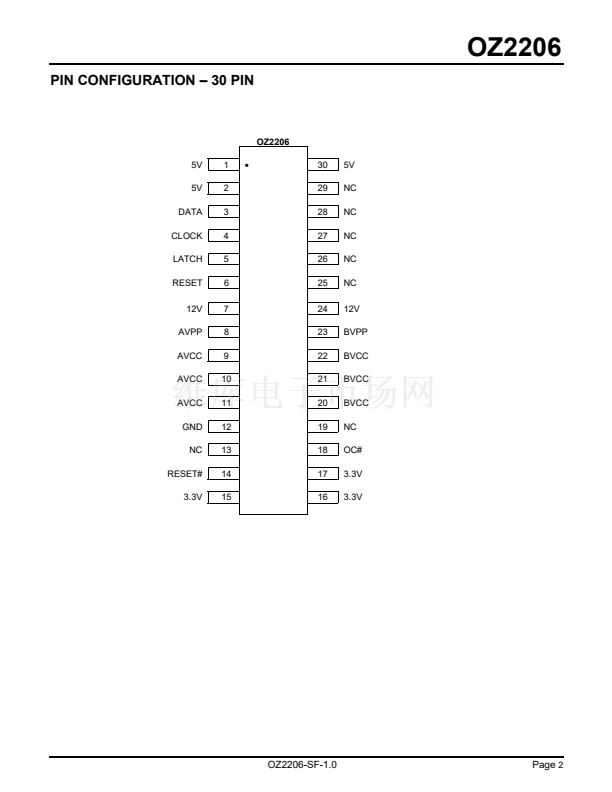

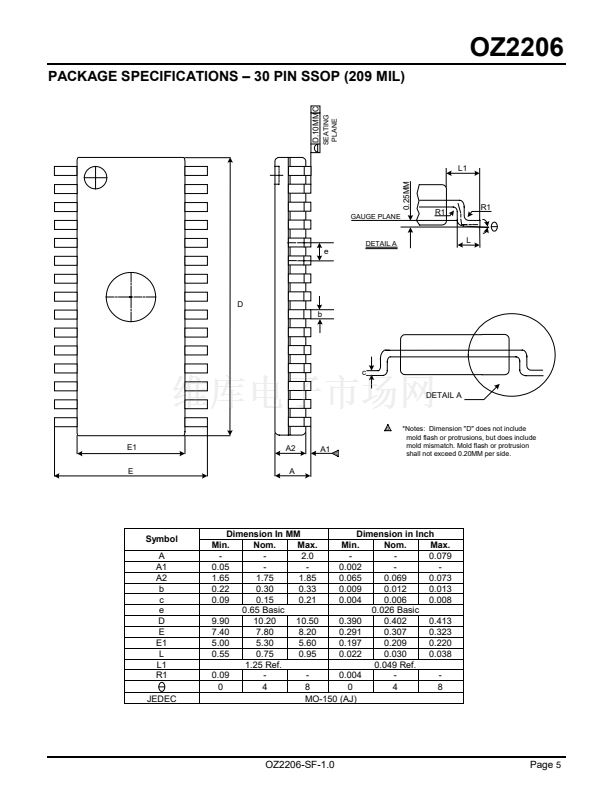

OZ2206S 鈥?30-pin SSOP

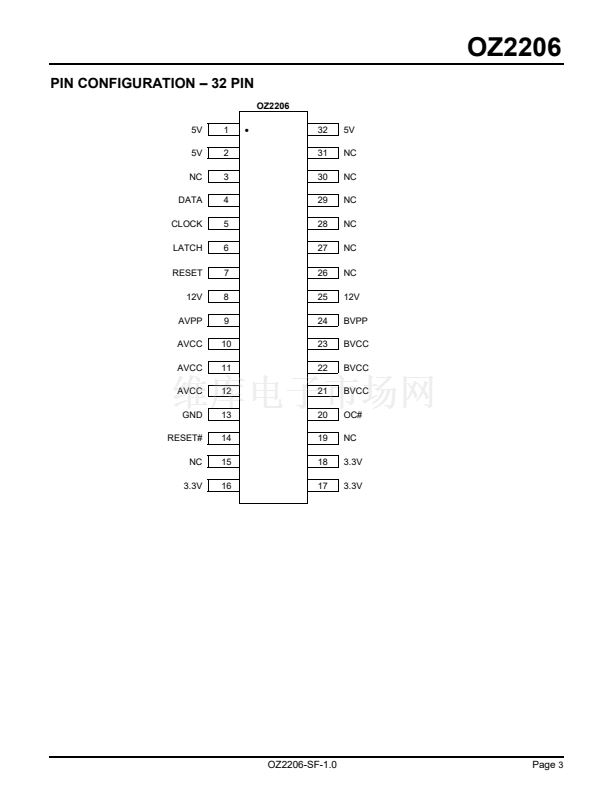

OZ2206R 鈥?32-pin TSSOP

09/11/02

2

Micro

OZ2206-SF-1.0

Page 1
