OV5116N
OV5116N SINGLE IC CMOS MONOCHROME CAMERA WITH NTSC ANALOG OUTPUT
Features
Single chip 1/4 inch format video image sensor
EIA/NTSC output
Selectable mirror image
Auto gain control (maximum + 18 dB)
High I.R. sensitivity for nighttime applications
Auto and manual backlight compensation mode
Gamma correction -On/Off
External frame sync capability
40mw on-chip power consumption
External data acquisition support
Smear free
Auto level expanding
Optional edge enhancement
General Description
The OV5116N is a complete black and white CMOS Video
Camera chip. It conforms to EIA/NTSC (60 Hz) standards
and outputs composite video capable of directly driving a 75鈩?/div>
display device.
The on-chip auto exposure allows for a wide range of lighting
conditions, eliminating the need for external mechanical shut-
ter components. This, along with its single supply, low power
consumption makes the OV5116N an incredibly versatile and
cost-effective video camera perfect for the following types of
applications:
Applications
Security
Surveillance
Machine Vision
Process Control
CCTV
Infant Monitoring
Toys
VRCHG
VREQ
AVDD
DEVDD

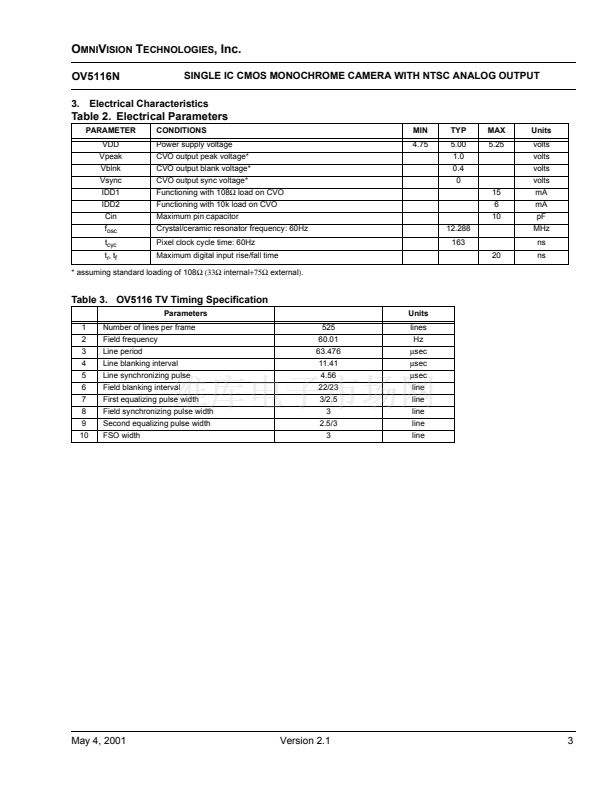

Key Specifications
Array Size
Effective Image
Area
25 DEGND
24 ATBLKT
Auto Electronic
Exposure
(seconds)
Minimum
Illumination
S/N Ratio
Power Supply
Power
Requirements
Package Type
320 x 240 pixels
3.2 x 2.5mm
N50
SVDD
4
ABOFF
VCBRT
5
6
3
2
1
AGND
28 27 26
1/60-1/6000
0.5 lux @ f 1.4
(3000k)
46 dB (AGC=1x)
5VDC, 鹵5%
(40 mw before-
loading), 70mw
standard loading
28 pin LCC
SGND 7
NTSC 8
BKLT 9
XTAL2 10
XTAL1 11
12
FSI
OV5116N
28 PIN LCC
23 OVDD
22 CVO
21 DGND
20 DVDD
19 PCLK/G8X
13 14 15 16
OENB
BPED
G4X
FAST
17 18
FSO/MIRR
GAMMA

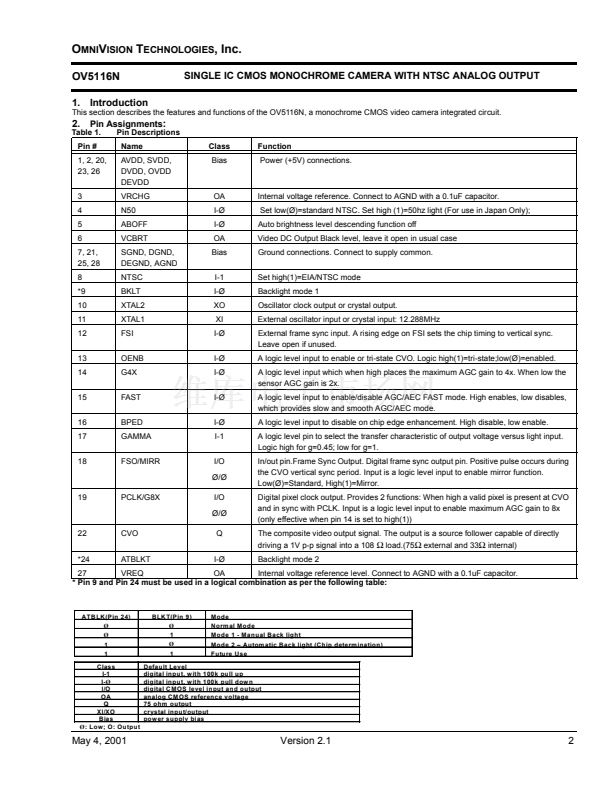

OV5116N PIN ASSIGNMENT
OmniVision Technologies, Inc. 930 Thompson Place Sunnyvale, CA 94085 U.S.A.
Tel: (408) 733-3030 Fax: (408) 733-3061
e-mail: info@ovt.com
Website: http://www.ovt.com
Version 2.1, May 4, 2001
