Data Sheet

October 2001

ORCA

廬

ORLI10G Quad 2.5 Gbits/s

10 Gbits/s, and 12.5 Gbits/s Line Interface FPSC

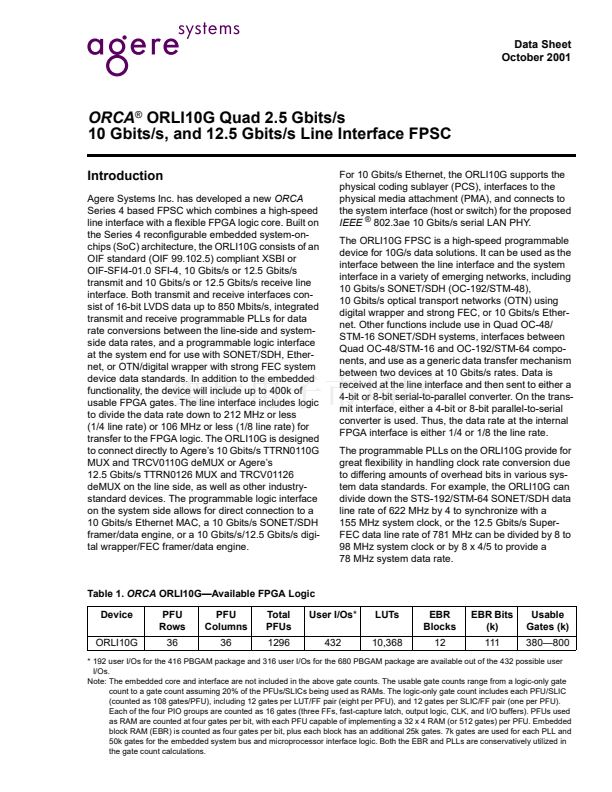

Introduction

Agere Systems Inc. has developed a new

ORCA

Series 4 based FPSC which combines a high-speed

line interface with a flexible FPGA logic core. Built on

the Series 4 reconfigurable embedded system-on-

chips (SoC) architecture, the ORLI10G consists of an

OIF standard (OIF 99.102.5) compliant XSBI or

OIF-SFI4-01.0 SFI-4, 10 Gbits/s or 12.5 Gbits/s

transmit and 10 Gbits/s or 12.5 Gbits/s receive line

interface. Both transmit and receive interfaces con-

sist of 16-bit LVDS data up to 850 Mbits/s, integrated

transmit and receive programmable PLLs for data

rate conversions between the line-side and system-

side data rates, and a programmable logic interface

at the system end for use with SONET/SDH, Ether-

net, or OTN/digital wrapper with strong FEC system

device data standards. In addition to the embedded

functionality, the device will include up to 400k of

usable FPGA gates. The line interface includes logic

to divide the data rate down to 212 MHz or less

(1/4 line rate) or 106 MHz or less (1/8 line rate) for

transfer to the FPGA logic. The ORLI10G is designed

to connect directly to Agere鈥檚 10 Gbits/s TTRN0110G

MUX and TRCV0110G deMUX or Agere鈥檚

12.5 Gbits/s TTRN0126 MUX and TRCV01126

deMUX on the line side, as well as other industry-

standard devices. The programmable logic interface

on the system side allows for direct connection to a

10 Gbits/s Ethernet MAC, a 10 Gbits/s SONET/SDH

framer/data engine, or a 10 Gbits/s/12.5 Gbits/s digi-

tal wrapper/FEC framer/data engine.

For 10 Gbits/s Ethernet, the ORLI10G supports the

physical coding sublayer (PCS), interfaces to the

physical media attachment (PMA), and connects to

the system interface (host or switch) for the proposed

IEEE

廬

802.3ae 10 Gbits/s serial LAN PHY.

The ORLI10G FPSC is a high-speed programmable

device for 10G/s data solutions. It can be used as the

interface between the line interface and the system

interface in a variety of emerging networks, including

10 Gbits/s SONET/SDH (OC-192/STM-48),

10 Gbits/s optical transport networks (OTN) using

digital wrapper and strong FEC, or 10 Gbits/s Ether-

net. Other functions include use in Quad OC-48/

STM-16 SONET/SDH systems, interfaces between

Quad OC-48/STM-16 and OC-192/STM-64 compo-

nents, and use as a generic data transfer mechanism

between two devices at 10 Gbits/s rates. Data is

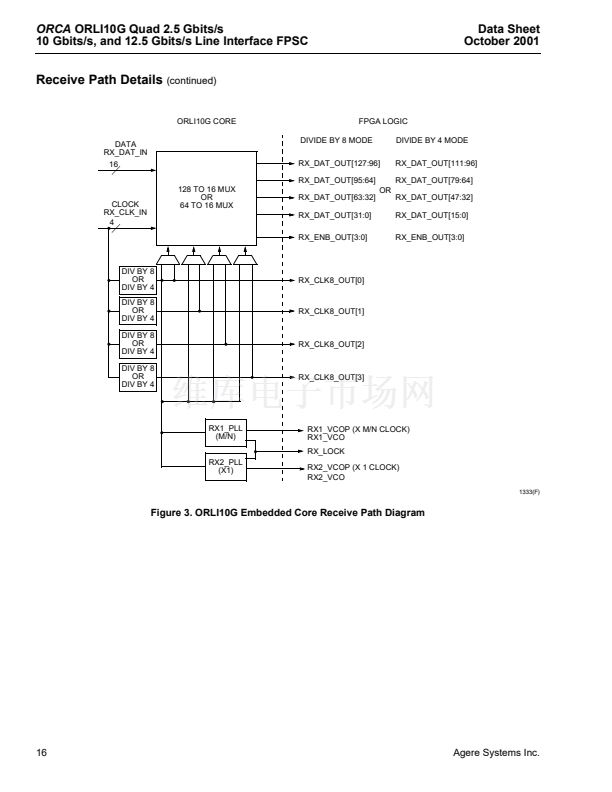

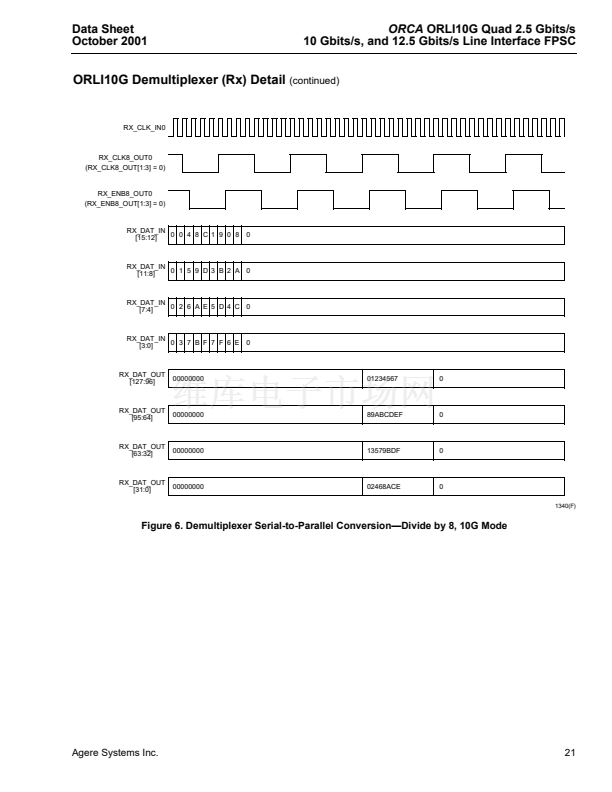

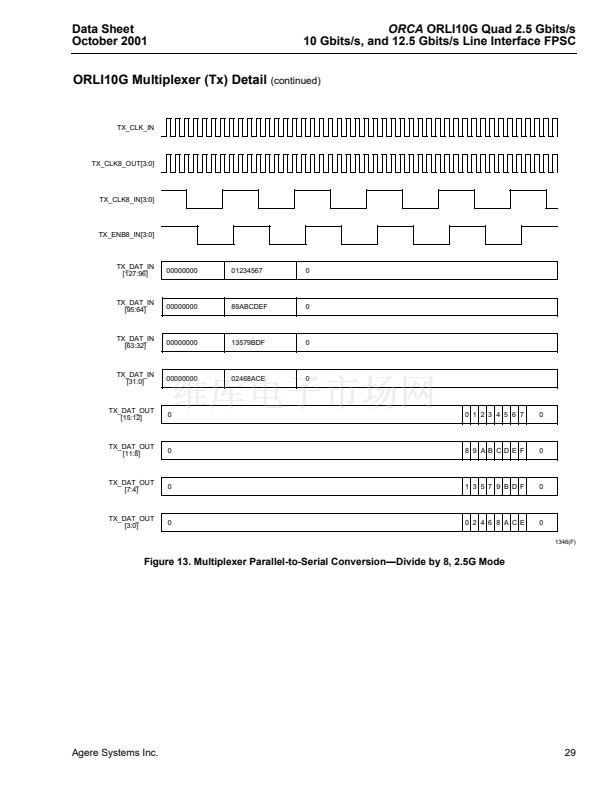

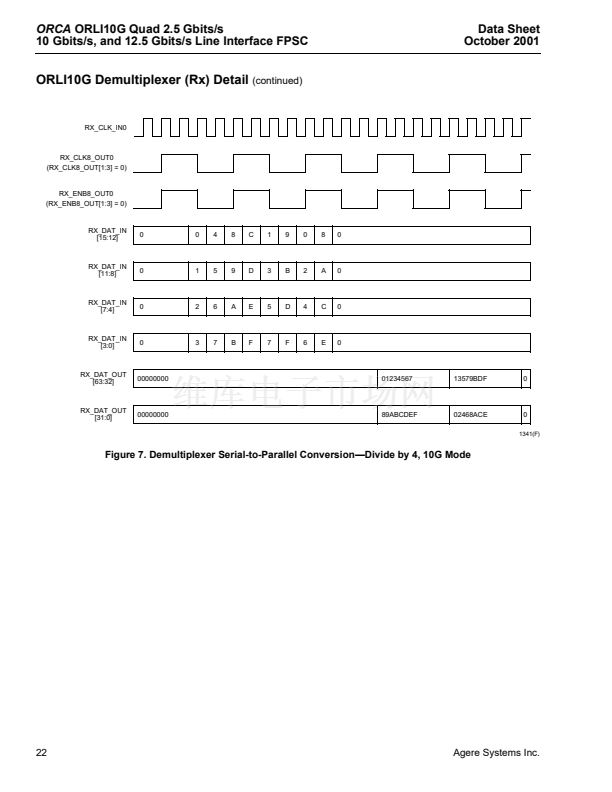

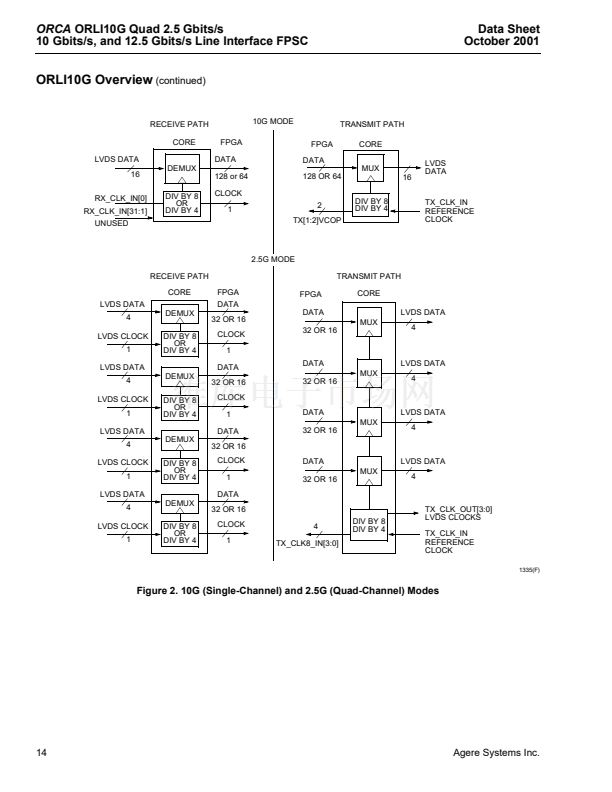

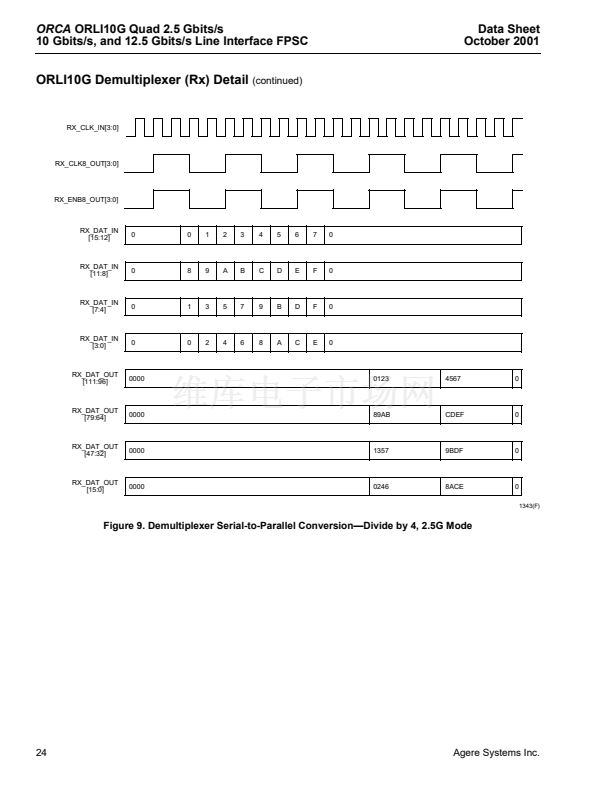

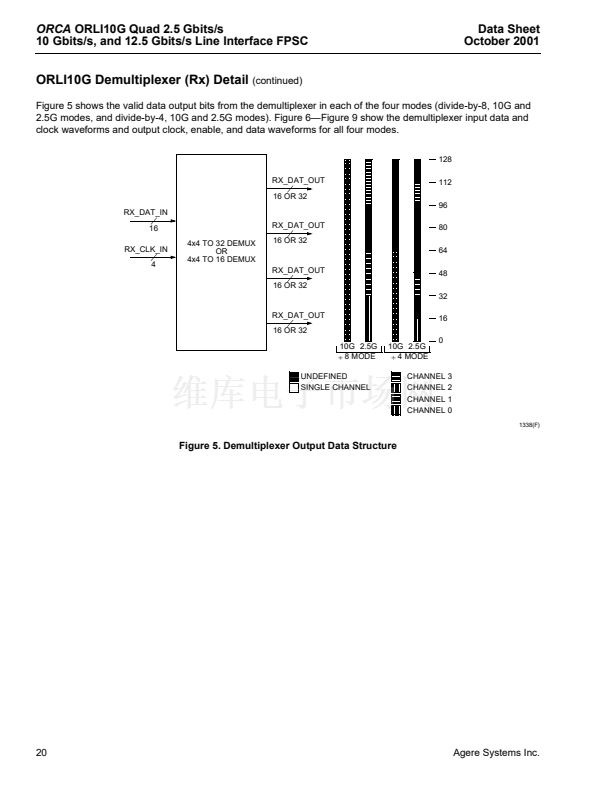

received at the line interface and then sent to either a

4-bit or 8-bit serial-to-parallel converter. On the trans-

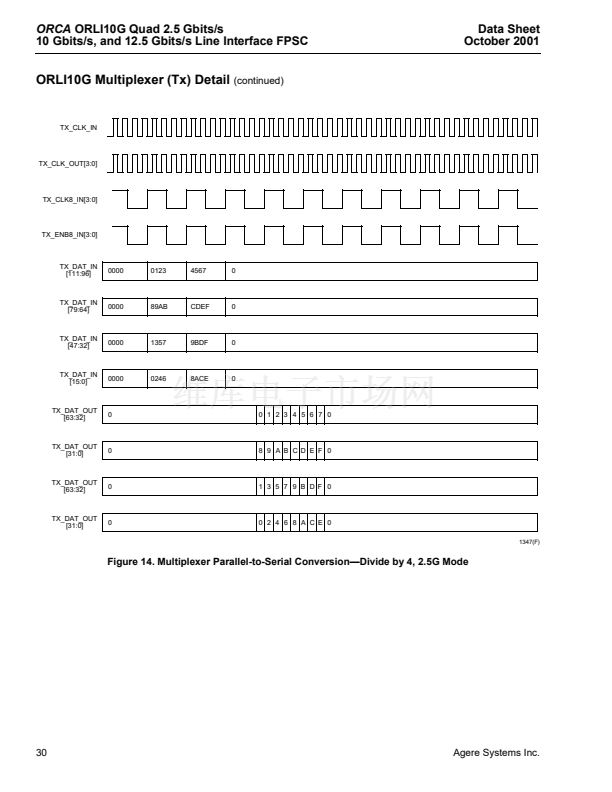

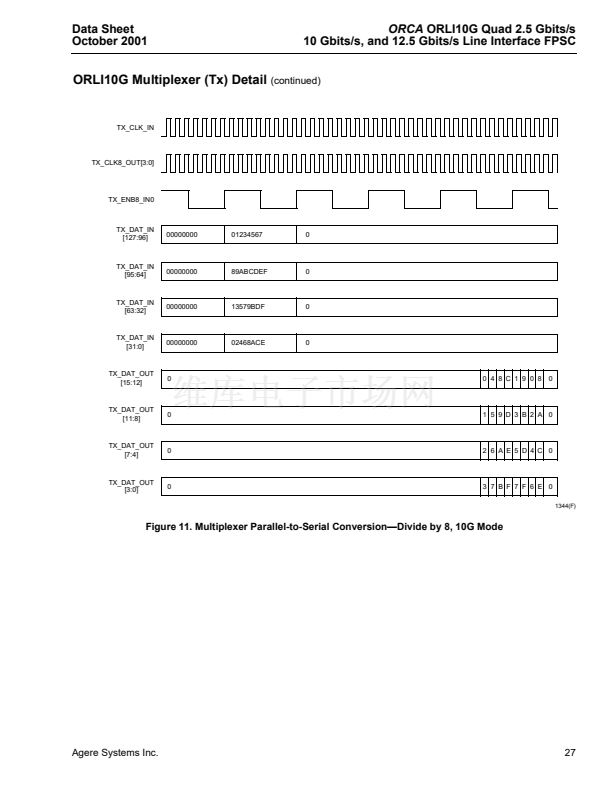

mit interface, either a 4-bit or 8-bit parallel-to-serial

converter is used. Thus, the data rate at the internal

FPGA interface is either 1/4 or 1/8 the line rate.

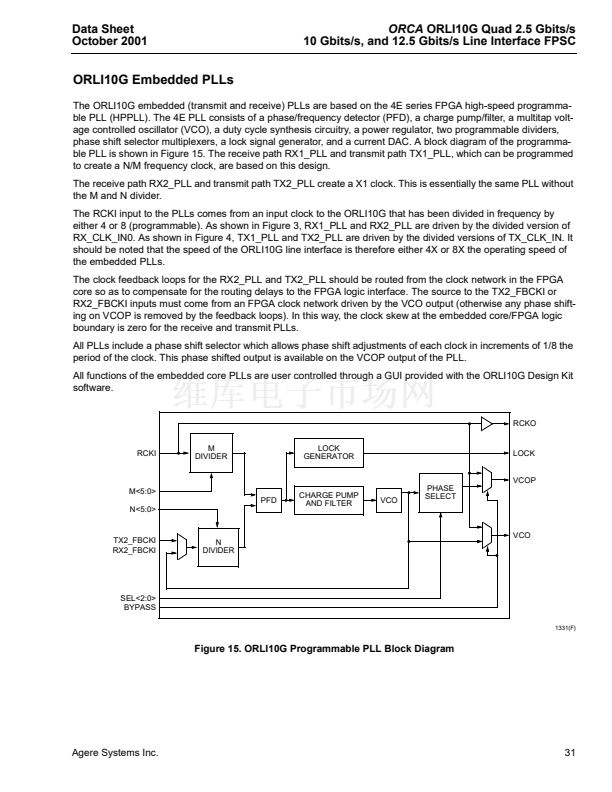

The programmable PLLs on the ORLI10G provide for

great flexibility in handling clock rate conversion due

to differing amounts of overhead bits in various sys-

tem data standards. For example, the ORLI10G can

divide down the STS-192/STM-64 SONET/SDH data

line rate of 622 MHz by 4 to synchronize with a

155 MHz system clock, or the 12.5 Gbits/s Super-

FEC data line rate of 781 MHz can be divided by 8 to

98 MHz system clock or by 8 x 4/5 to provide a

78 MHz system data rate.

Table 1.

ORCA

ORLI10G鈥擜vailable FPGA Logic

Device

ORLI10G

PFU

Rows

36

PFU

Columns

36

Total

PFUs

1296

User I/Os*

432

LUTs

10,368

EBR

Blocks

12

EBR Bits

(k)

111

Usable

Gates (k)

380鈥?00

* 192 user I/Os for the 416 PBGAM package and 316 user I/Os for the 680 PBGAM package are available out of the 432 possible user

I/Os.

Note: The embedded core and interface are not included in the above gate counts. The usable gate counts range from a logic-only gate

count to a gate count assuming 20% of the PFUs/SLICs being used as RAMs. The logic-only gate count includes each PFU/SLIC

(counted as 108 gates/PFU), including 12 gates per LUT/FF pair (eight per PFU), and 12 gates per SLIC/FF pair (one per PFU).

Each of the four PIO groups are counted as 16 gates (three FFs, fast-capture latch, output logic, CLK, and I/O buffers). PFUs used

as RAM are counted at four gates per bit, with each PFU capable of implementing a 32 x 4 RAM (or 512 gates) per PFU. Embedded

block RAM (EBR) is counted as four gates per bit, plus each block has an additional 25k gates. 7k gates are used for each PLL and

50k gates for the embedded system bus and microprocessor interface logic. Both the EBR and PLLs are conservatively utilized in

the gate count calculations.
