OPA549S Datasheet

  • OPA549S

  • OP-AMP|SINGLE|SIP|11PIN|PLASTIC

  • 15頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

OPA549
OPA
549
OPA
549
SBOS093A 鈥?MARCH 2001
High-Voltage, High-Current
OPERATIONAL AMPLIFIER
FEATURES
q
HIGH OUTPUT CURRENT:
8A Continuous
10A Peak
q
WIDE POWER SUPPLY RANGE:
Single Supply: +8V to +60V
Dual Supply:
鹵
4V to
鹵
30V
q
WIDE OUTPUT VOLTAGE SWING
q
FULLY PROTECTED:
Thermal Shutdown
Adjustable Current Limit
q
OUTPUT DISABLE CONTROL
q
THERMAL SHUTDOWN INDICATOR
q
HIGH SLEW RATE: 9V/碌s
q
CONTROL REFERENCE PIN
q
11-LEAD POWER PACKAGE
DESCRIPTION
The OPA549 is a low-cost, high-voltage/high-current opera-
tional amplifier ideal for driving a wide variety of loads.
This laser-trimmed monolithic integrated circuit provides
excellent low-level signal accuracy, and high output voltage
and current.
The OPA549 operates from either single or dual supplies for
design flexibility. The input common-mode range extends
below the negative supply.
The OPA549 is internally protected against over-tempera-
ture conditions and current overloads. In addition, the
OPA549 provides an accurate, user-selected current limit.
Unlike other designs which use a 鈥減ower鈥?resistor in series
with the output current path, the OPA549 senses the load
indirectly. This allows the current limit to be adjusted from
0A to 10A with a resistor/potentiometer, or controlled digi-
tally with a voltage-out or current-out DAC.
The Enable/Status (E/S) pin provides two functions. It can
be monitored to determine if the device is in thermal shut-
down, and it can be forced low to disable the output stage
and effectively disconnect the load.
The OPA549 is available in an 11-lead power package. Its
copper tab allows easy mounting to a heat sink for excellent
thermal performance. Operation is specified over the ex-
tended industrial temperature range, 鈥?0擄C to +85擄C.
APPLICATIONS
q
q
q
q
q
q
VALVE, ACTUATOR DRIVER
SYNCHRO, SERVO DRIVER
POWER SUPPLIES
TEST EQUIPMENT
TRANSDUCER EXCITATION
AUDIO POWER AMPLIFIER
V+
OPA549
I
LIM
Ref
R
CL
ES Pin
E/S
Forced Low: Output disabled
Indicates Low: Thermal shutdown
V鈥?/div>
V
O
R
CL
sets the current limit
value from 0A to 10A.
(Very Low Power Dissipation)
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright 漏 1999, Texas Instruments Incorporated
www.ti.com

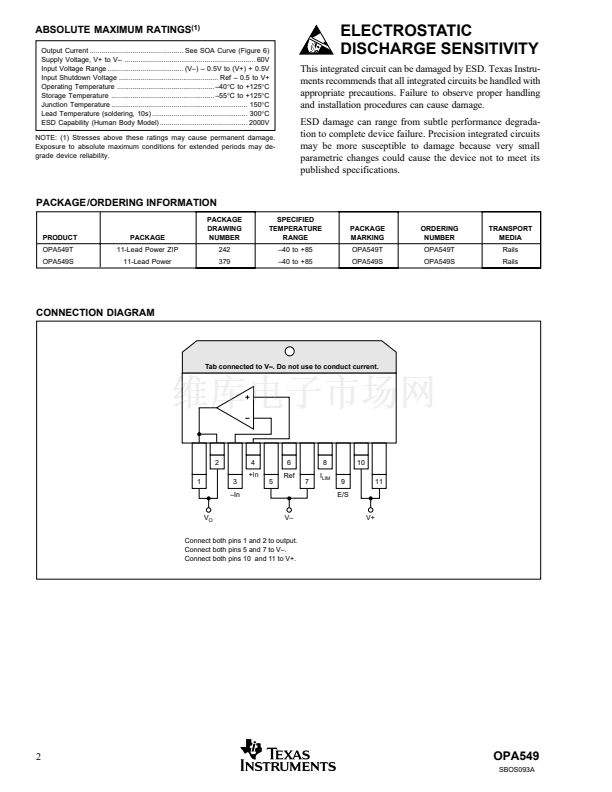

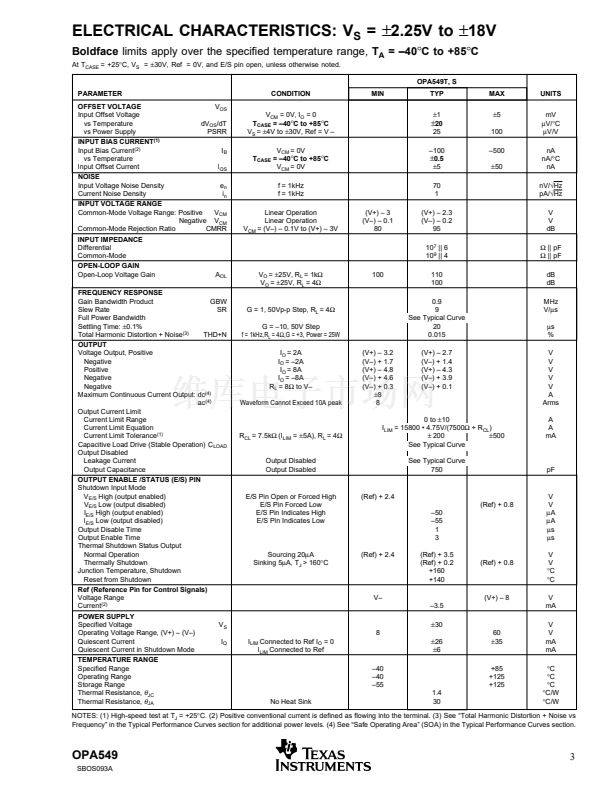

OPA549S 產品屬性

  • 25

  • 集成電路 (IC)

  • Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

  • -

  • 功率

  • 1

  • -

  • 9 V/µs

  • 900kHz

  • -

  • 100nA

  • 1000µV

  • 26mA

  • 10A

  • 8 V ~ 60 V，±4 V ~ 30 V

  • -40°C ~ 85°C

  • 通孔

  • TO-220-11，電源組

  • 11-電源組

  • 管件

  • 296-11918296-11918-ND
