T-1 (3 mm) package style
Broad irradiance pattern
Point source with flat lens
Higher power output than GaAs at equivalent drive currents
850 nm diode
Description:
The
OP265WPS
point source
model is a flat-lensed 850 nm diode with a
broad
radiation pattern that provides
relatively even illumination over a large area. Its stable forward voltage (V
F
) vs. temperature characteristic makes
this device appropriate for applications where voltage is limited (such as battery operation), while the low rise time/
fall time (t
r
/t
f
) makes it ideal for high-speed operation.
OP265 devices conform to the OP505 and OP535 series devices.
Please refer to Application Bulletins 208 and 210 for additional design information and reliability (degradation) data.
Applications:
鈥?/div>
Space-limited applications
鈥?/div>
Applications requiring coupling
efficiency
鈥?/div>
Precision optical designs
鈥?/div>
Battery-operated or voltage-limited
applications
Part
Number
OP265WPS
LED Peak
Wavelength
850 nm
Ordering Information
Output Power (mW/
cm
2
) Min / Max
.055 / .55
I
F
(mA)
Typ / Max
20 / 50
Total Beam
Angle
120擄
Lead
Length
0.50"
DIMENSIONS ARE IN:
[MILLIMETERS]
INCHES
1
2
Pin #
1
2
LED
Cathode
Anode
CONTAINS POLYSULFONE
To avoid stress cracking, we suggest using
ND Industries鈥?/div>
Vibra-Tite
for thread-locking.
Vibra-Tite
evaporates fast without causing structural
failure in OPTEK'S molded plastics.
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A
07/06
Page 1 of 3
OPTEK Technology Inc. 鈥?/div>
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com

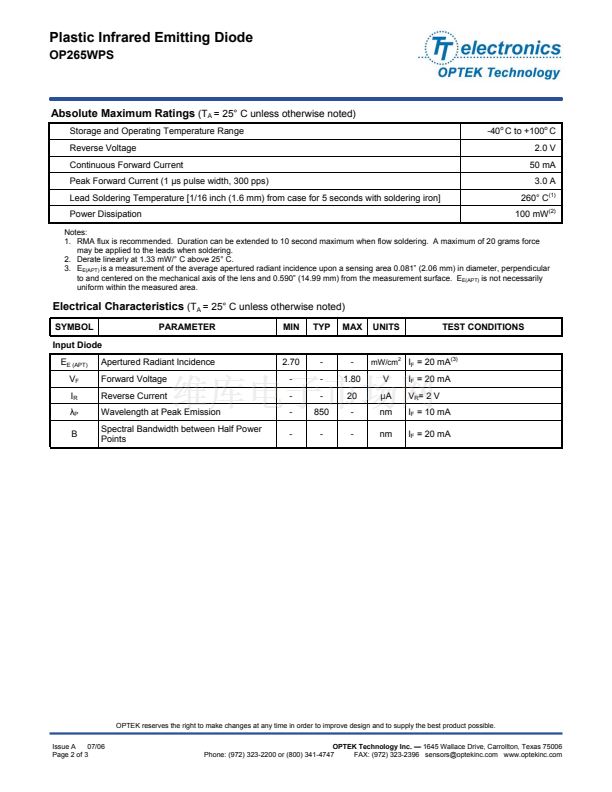

OP265WPS 產品屬性
LED Thermal Management
1
光電元件
紅外發射極
-
50mA
-
850nm
1.8V
120°
頂視圖
通孔
T-1
-
