OMR9601

1 M Rad (Si), ULTRA LOW DROPOUT

POSITIVE LINEAR REGULATOR

+3.3Vin to +2.5V Output at 3.0A

In Hermetic Packages

FEATURES

鈥?/div>

Total dose and low dose capability to 1M Rad (Si) allows use in space applications

鈥?/div>

Ultra low dropout voltage of 0.4V @ 3A out significantly reduces power consumption

鈥?/div>

Low noise, higher efficiency

鈥?/div>

Remote Shutdown permits power sequencing to be easily implemented

鈥?/div>

Hermetic MO-078AA (TO-258) and 8-lead flat pack ensure higher reliability

鈥?/div>

K-level screened

DESCRIPTION

The OMR9601 is a radiation hardened, ultra low dropout linear regulator designed

specifically for space applications. This product has been characterized to a total ionizing

dose of 1M Rad (Si) per MIL-STD-883, Method 1019, Condition A at both high and low

dose rates under biased and unbiased conditions to account for ELDRE effects in bipolar

devices. The ultra low dropout voltage of 0.4V @ 3A makes the part particularly useful for

applications requiring low noise and higher efficiency.

MAXIMUM RATINGS (T

=25擄C unless otherwise specified)

擄

Parameter

Output Current

Input Voltage

Lead Temperature

Power Dissipation, T

=25擄C

Thermal Resistance, Junction to Case 鈥?MO-078AA

Thermal Resistance, Junction to Case 鈥?8 Lead Flat Pack

Operating Temperature

Storage Temperature Range

Symbol

Vin

TOT

thJC

Value

3.5

+7.0

300

6.5

-55鈥?125

-65鈥?150

Unit

擄C

擄C/W

擄C

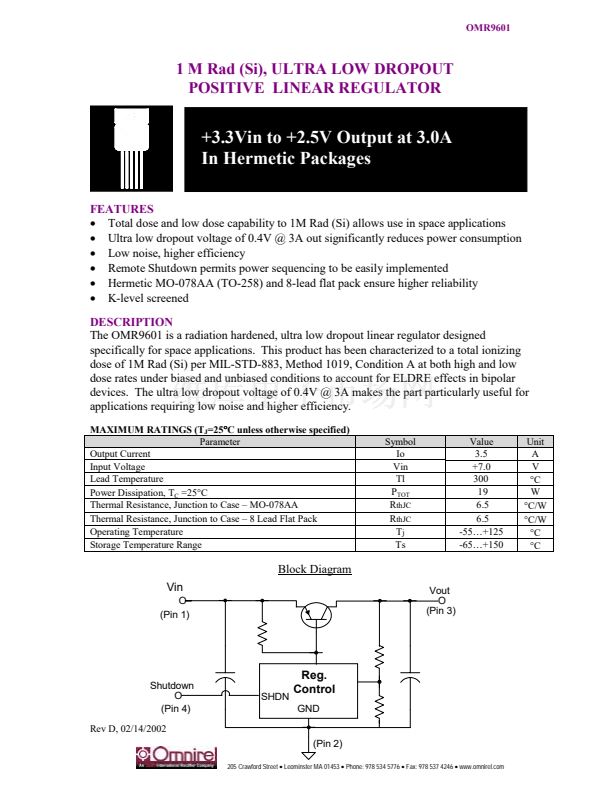

Block Diagram

Vin

(Pin 1)

Vout

(Pin 3)

Shutdown

(Pin 4)

Rev D, 02/14/2002

SHDN

Reg.

Control

GND

(Pin 2)
