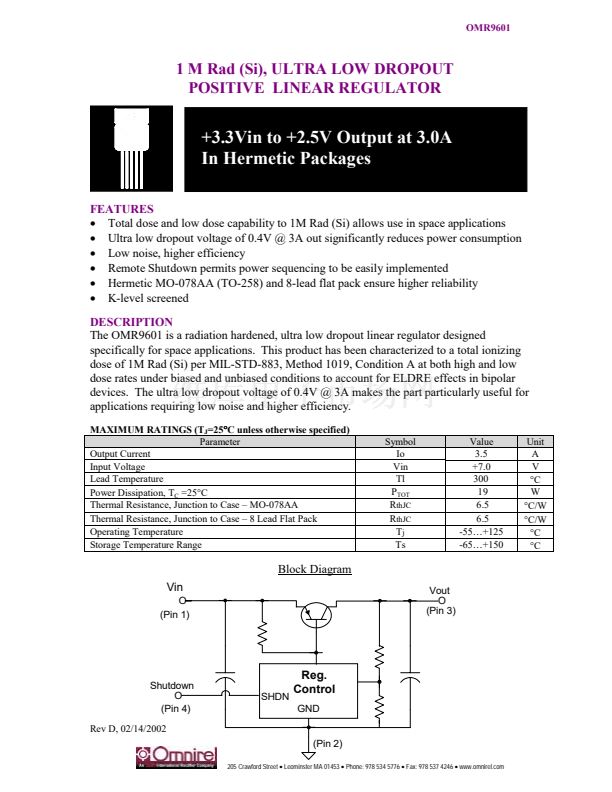

OMR9601
1 M Rad (Si), ULTRA LOW DROPOUT
POSITIVE LINEAR REGULATOR
+3.3Vin to +2.5V Output at 3.0A
In Hermetic Packages
FEATURES
鈥?/div>
Total dose and low dose capability to 1M Rad (Si) allows use in space applications
鈥?/div>
Ultra low dropout voltage of 0.4V @ 3A out significantly reduces power consumption
鈥?/div>
Low noise, higher efficiency
鈥?/div>
Remote Shutdown permits power sequencing to be easily implemented
鈥?/div>

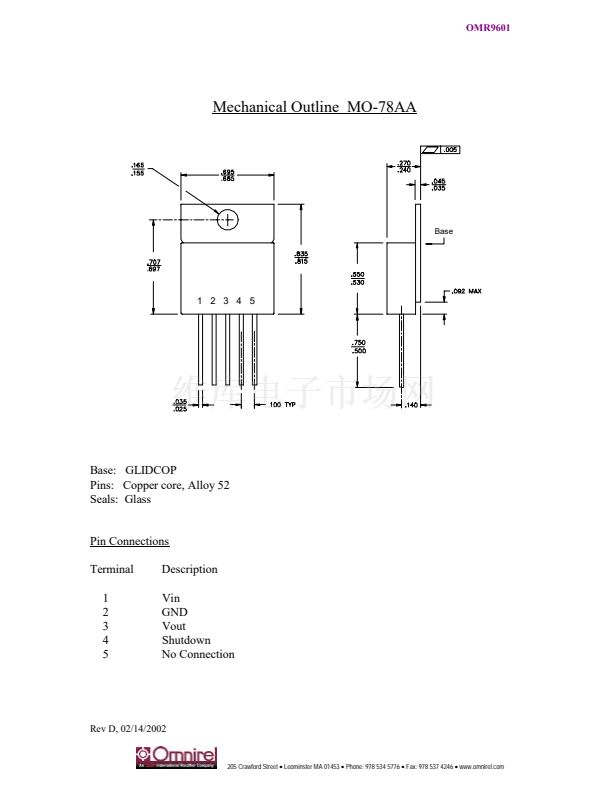

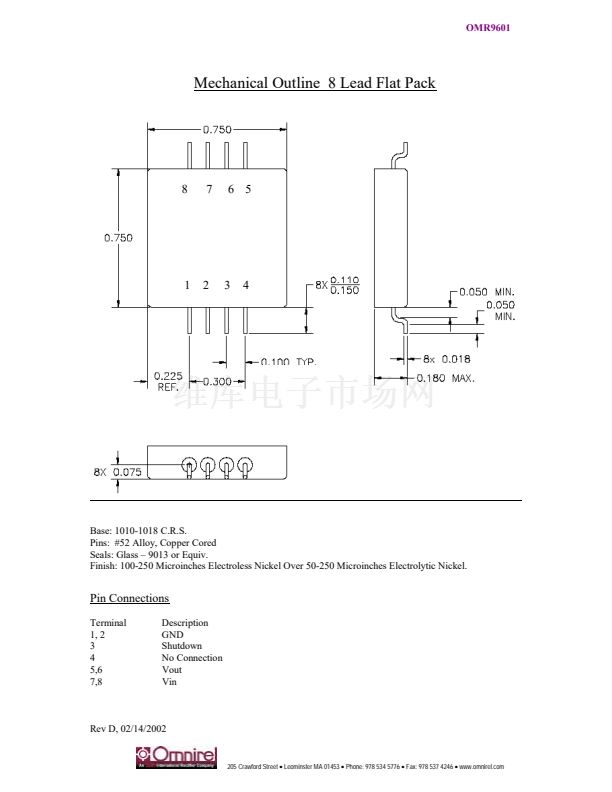

Hermetic MO-078AA (TO-258) and 8-lead flat pack ensure higher reliability
鈥?/div>

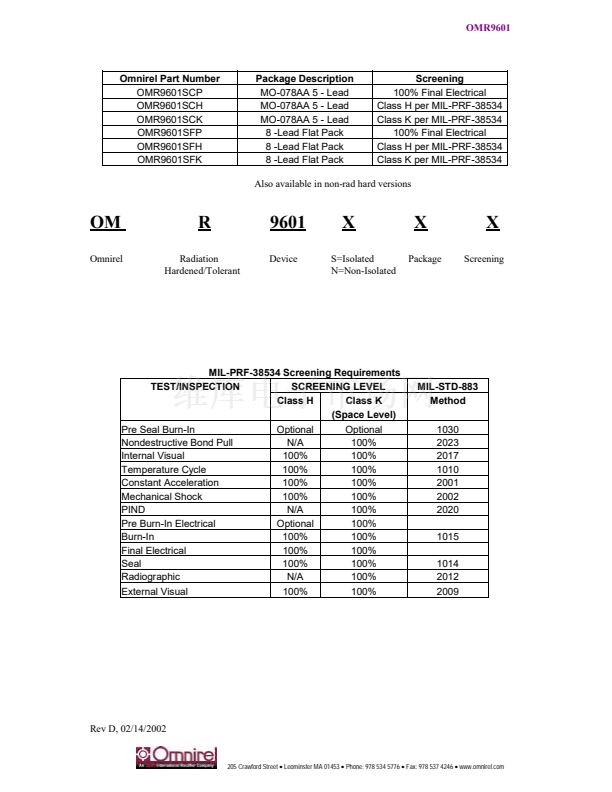

K-level screened
DESCRIPTION
The OMR9601 is a radiation hardened, ultra low dropout linear regulator designed
specifically for space applications. This product has been characterized to a total ionizing
dose of 1M Rad (Si) per MIL-STD-883, Method 1019, Condition A at both high and low
dose rates under biased and unbiased conditions to account for ELDRE effects in bipolar
devices. The ultra low dropout voltage of 0.4V @ 3A makes the part particularly useful for
applications requiring low noise and higher efficiency.
MAXIMUM RATINGS (T
J
=25擄C unless otherwise specified)
擄
Parameter
Output Current
Input Voltage
Lead Temperature
Power Dissipation, T
C
=25擄C
Thermal Resistance, Junction to Case 鈥?MO-078AA
Thermal Resistance, Junction to Case 鈥?8 Lead Flat Pack
Operating Temperature
Storage Temperature Range
Symbol
Io
Vin
Tl
P
TOT
R
thJC
R
thJC
T
j
Ts
Value
3.5
+7.0
300
19
6.5
6.5
-55鈥?125
-65鈥?150
Unit
A
V
擄C
W
擄C/W
擄C/W
擄C
擄C
Block Diagram
Vin
O
(Pin 1)
Vout
O
(Pin 3)
Shutdown
O
(Pin 4)
Rev D, 02/14/2002
SHDN
Reg.
Control
GND
(Pin 2)
205 Crawford Street
鈥?/div>
Leominster MA 01453
鈥?/div>
Phone: 978 534 5776
鈥?/div>
Fax: 978 537 4246
鈥?/div>
www.omnirel.com
