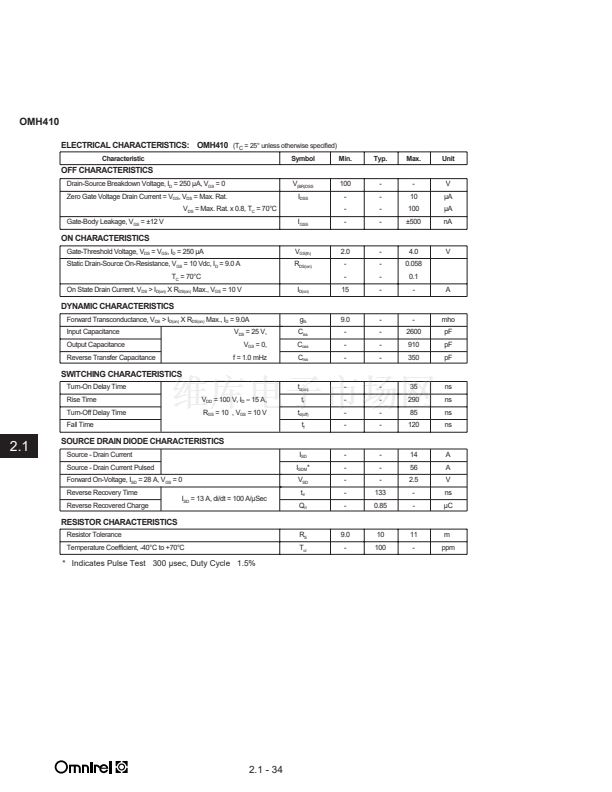

OMH410

DUAL, LOW VOLTAGE, LOW R

DS(on)

, MOSFET

H-BRIDGE CIRCUIT IN A PLASTIC PACKAGE

Dual 100 Volt, 15 To 20 Amp H-Bridge

With Current And Temperature Sensing

In A Low Profile Plastic Package

FEATURES

鈥?/div>

H-Bridge Configuration

Zener Gate Protection

10 m Shunt Resistor

2 Linear Thermal Sensors, One For Each Bridge

Isolated Package

Output Currents Up To 20 Amps

DESCRIPTION

This series of MOSFET switches is configured as a Dual H-Bridge with common V

lines, precision series shunt resistor in the source line, and sensing elements to

monitor the substrate temperature of each switch. This device is ideally suited for

Stepping Motor Control applications where size, performance, and efficiency are key.

2.1

MAXIMUM RATINGS

= @ 25擄C)

Part

Number

OMH410

(Volts)

100

DS(on)

(m )

(Amps)

Package

MP-3

4 11 R0

2.1 - 33
