Isolated Hermetic Surface Mount Package
Reference Voltage Set Internally To 鹵2% (鹵1% Available)
Built-In Thermal Overload Protection
Short Circuit Current Limiting
Small Metal Package
Product Is Available Hi-Rel Screened
DESCRIPTION
These three terminal negative regulators are supplied in a hermetic metal surface
mount package. All protective features are designed into the circuit including thermal
shutdown, current limiting and safe-area control. With heat sinking, they can deliver
over 3.0 amps of output current. These units feature 2% initial voltage tolerance, with
1.0% load regulation and .015% line regulation.
ABSOLUTE MAXIMUM RATINGS
Input to Output Voltage Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -35V
Operating Junction Temperature Range. . . . . . . . . . . . . . . . . . . . . . . . - 55擄C to + 150擄C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - 55擄C to + 150擄C
Typical Power/Thermal Characteristics:
Rated Power @ 25擄C
T
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28W
T
A
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3W
Thermal Resistance:
胃
JC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2擄C/W
胃
JA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42擄C/W
Lead Temperature at Case (5 sec)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225擄C
3.5

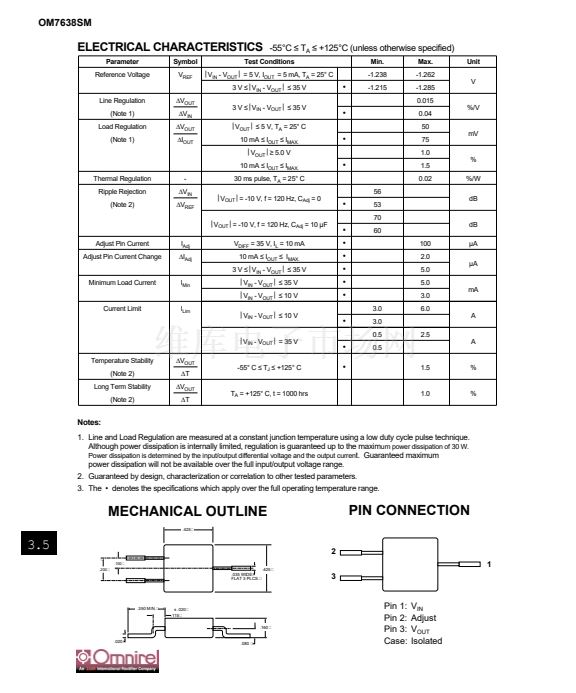

Note: For 鹵1% device, add letter 鈥淎鈥?in front of part number (e.g. OMA7638SM).
