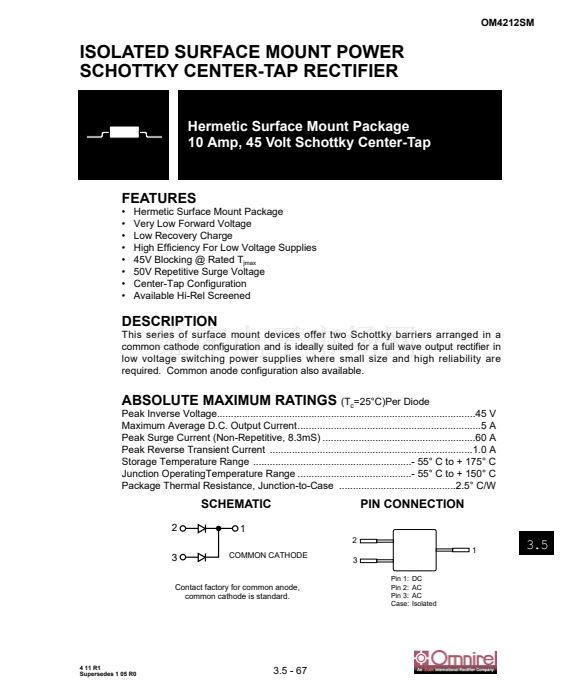

Hermetic Surface Mount Package
Very Low Forward Voltage
Low Recovery Charge
High Efficiency For Low Voltage Supplies
45V Blocking @ Rated T
jmax
50V Repetitive Surge Voltage
Center-Tap Configuration
Available Hi-Rel Screened
DESCRIPTION
This series of surface mount devices offer two Schottky barriers arranged in a
common cathode configuration and is ideally suited for a full wave output rectifier in
low voltage switching power supplies where small size and high reliability are
required. Common anode configuration also available.
ABSOLUTE MAXIMUM RATINGS
(T
c
=25擄C)Per Diode
Peak Inverse Voltage.............................................................................................45 V
Maximum Average D.C. Output Current..................................................................5 A
Peak Surge Current (Non-Repetitive, 8.3mS) .......................................................60 A
Peak Reverse Transient Current .........................................................................1.0 A
Storage Temperature Range .........................................................- 55擄 C to + 175擄 C
Junction OperatingTemperature Range .........................................- 55擄 C to + 150擄 C
Package Thermal Resistance, Junction-to-Case ..........................................2.5擄 C/W
SCHEMATIC
1
2
2
3
3
1
1
2
PIN CONNECTION
COMMON CATHODE
3
1
2
3
3.5
Contact factory for common anode,
common cathode is standard.
Pin 1:
Pin 2:
Pin 3:
Case:
DC
AC
AC
Isolated
4 11 R1
Supersedes 1 05 R0
3.5 - 67
