OL5201N-25 Datasheet

  • OL5201N-25

  • 1.55 レm High-Power Laser-Diode DIP Module

  • 4頁

  • OKI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

E2V0020-37-X1
LASER DIODES
隆 electronic components
OL5201N-25, OL5204N-25
1.55
mm
High-Power Laser-Diode DIP Module
OL5201N-25, OL5204N-25
GENERAL DESCRIPTION
The OL5201N-25 and OL5204N-25 are 1.55
mm,
extremely high-power laser-diode DIP modules
with single-mode fiber pigtails. The Multi-Quantum-Well (MQW) structure laser diodes
achieve a single-mode fiber output of over 25 mW. The modules are optimal light sources for
optical measuring instruments and other systems that require high-power.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
High output power: Pf=25 mW
Single-mode fiber
Hermetically-sealed,14-pin Dual-In-line Package (DIP)
Includes thermoelectric cooler for temperature control
Includes monitor photodiode for power control (OL5201N-25)
APPLICATIONS
鈥?Optical measuring instruments
鈥?OTDRs
PACKAGE DIMENSIONS (Unit: mm)
鈥?OL5201N-25/OL5204N-25
25.4
12.7
f0.9
5
1
1.0
20.8
24
7.1
9
3.8
2.54
f0.45
鈥?OL5201N-25
TERMINAL CONNECTION
(BOTTOM VIEW)
#8
#14
(鈥?
COOLER
6.35
鈥?OL5204N-25
TERMINAL CONNECTION
(BOTTOM VIEW)
#8
FIBER
LD
THERMISTOR
CASE
5.9
7.62
19
#14
(鈥?
COOLER
FIBER
PD
LD
THERMISTOR
CASE
(+)
#7
#1
#7
(+)
#1
PIN No.
1
2
3
4
5
6
7
FUNCTION
COOLER ANODE
NC
NC
NC
LD ANODE and
CASE GROUND
NC
PD CATHODE
PIN No.
FUNCTION
PD ANODE
8
LD CATHODE
9
LD ANODE and
10
CASE GROUND
THERMISTOR
11
THERMISTOR
12
NC
13
COOLER CATHODE
14
PIN No.
1
2
3
4
5
6
7
FUNCTION
COOLER ANODE
NC
NC
NC
LD ANODE and
CASE GROUND
NC
NC
PIN No.
FUNCTION
NC
8
LD CATHODE
9
LD ANODE and
10
CASE GROUND
THERMISTOR
11
THERMISTOR
12
NC
13
COOLER CATHODE
14

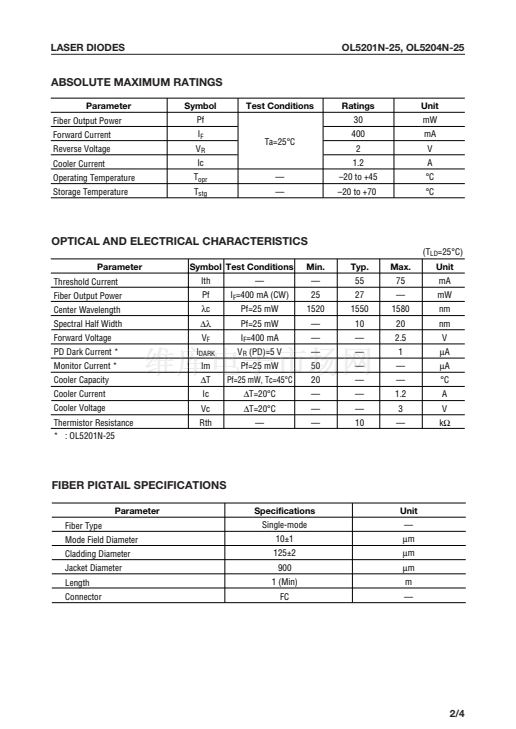

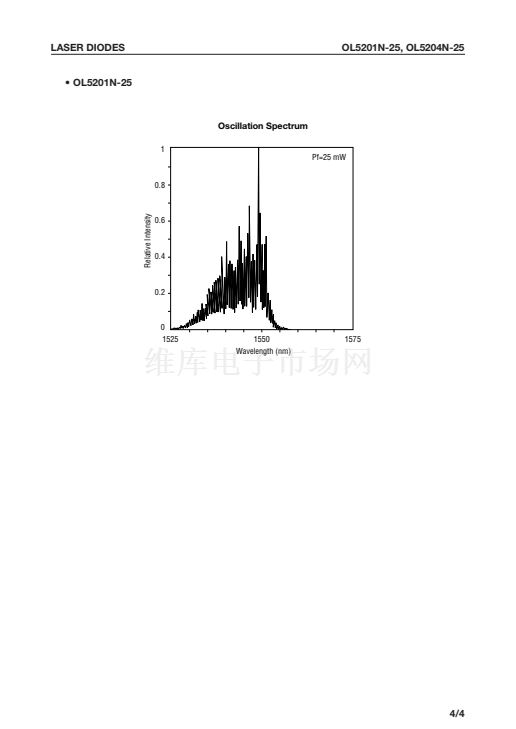

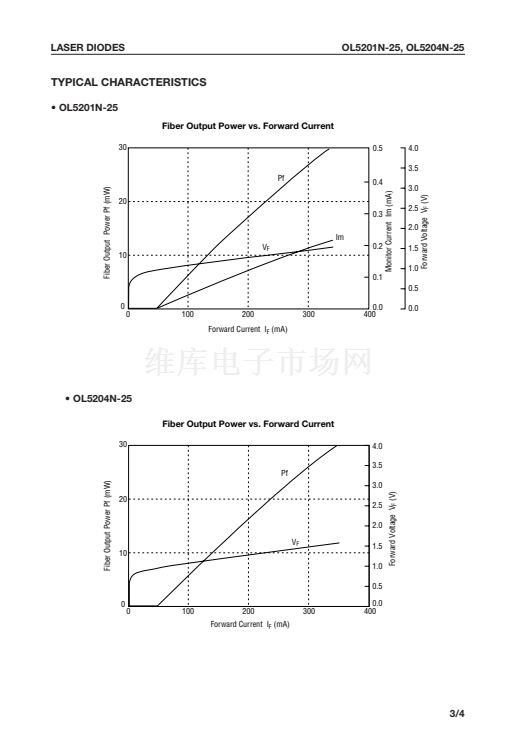

1/4
