TRANSMISSION CABLE:
Single mode fiber, SI-10/125
PIGTAIL ORDERING INFORMATION
1
Pigtail Optical
Connector
SC
FC
MUJ
51 to 55 cm
Fiber Code
Length
Product
Number
OD-S524-SCFPC-SM
OD-S524-FCFPC-SM
OD-S524-MUJFPC-SM
NOTE:
1. Pigtail is not included with the product. A separate order is
required.
PERFORMANCE CHARACTERISTICS (OD-J6888-HA01)
Items
Transmission Speed
Data Format
Pigtail Fiber
Performance
2488.32 Mbps
Scrambled NRZ
(External Scrambler is Required.)
SMF
550 nm each
Optical Connector: SC, FC, MUJ
Minimum receiving power:
-18 dBm MAX (Average),
Overload: -3 dBm MIN (Average)
Data Interface: P-ECL
Clock Interface: P-ECL
SMF (SI-10/125)
-40 to 85擄C
30 to 80 % RH (non-condense
Condition)
DC: +3.3 V
0.6 W TYP

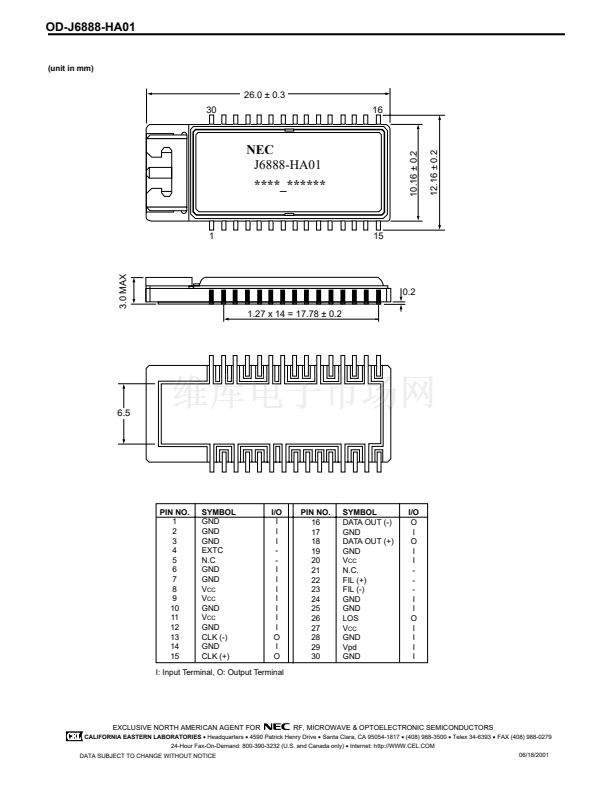

10 x 26 x 3 (mm) (refer to drawing)
Optical input down alarm
Output Input power range
Output Electrical Signal
Interface
Applicable Transmission
Fiber Cables
Ambient Temperature
Relative Humidity
Power Supply Voltage
Power Consumption
Dimensions
Alarm Functions
