ALARM FUNCTIONS:
Optical input down alarm
鈥?PLL CLOCK DATA RECOVERY
PIGTAIL ORDERING INFORMATION
1
Pigtail Optical Connector
SC
MUJ
FC
Product Number
OD-S656-SC-C
OD-S656-FC-C
OD-S656-MUJ-C
NOTE:
1. Pigtail is not included with the product. A separate order is
required.
PERFORMANCE CHARACTERISTICS (OD-J6888-0A01)
Items
Transmission Speed
Data Format
Pigtail Fiber
Performance
2.48832 Gbps
Scrambled NRZ
(External Scrambler is Required.)
SMF
550 nm each
Optical Connector: SC, FC, MUJ
Minimum receiving power:
-18 dBm MAX (Average),
Overload: 0 dBm MIN (Average)
Data Interface: P-ECL
Clock Interface: P-ECL
SMF (SI-10/125)
OD-J6888-0B01: 0 to 75擄C
30 to 80 % RH (non-condense
Condition)
DC: +3.3 V
0.6 W TYP

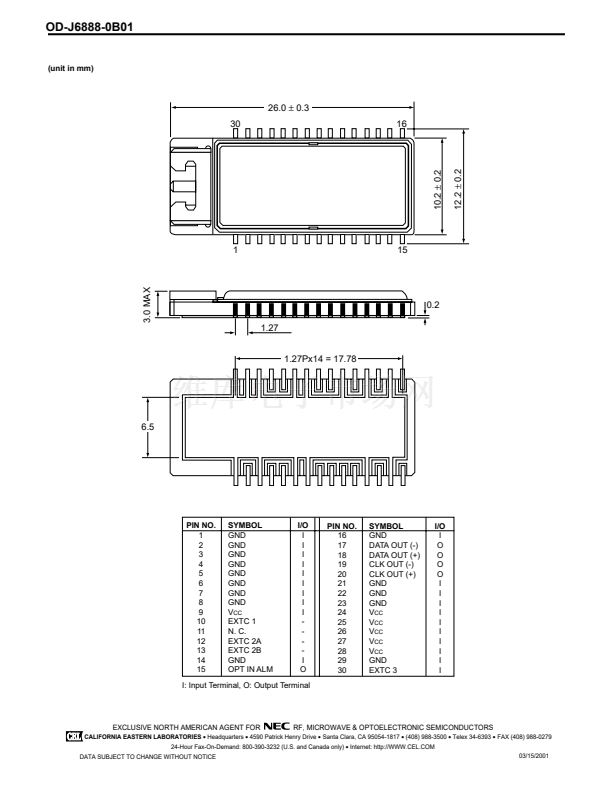

26 x 10 x 3 (mm) (refer to drawing)
Optical input down alarm
Output Input power range
Output Electrical Signal
Interface
Applicable Transmission
Fiber Cables
Ambient Temperature
Relative Humidity
Power Supply Voltage
Power Consumption
Dimensions
Alarm Functions
