鈥?ALARM FUNCTIONS:
Optical output down alarm, LD bias alarm
APPLICATIONS
鈥?TELECOMMUNICATIONS NETWORKS
SONET OC-48 SR Interface Compatible
(Bellcore GR-253-CORE requirements)
SDH STM-16 I-16 Interface Compatible
(ITU-T Recommendation G.957)
PERFORMANCE CHARACTERISTICS
Parameter
Transmission Speed
Data Format
Pigtail Fiber
(Separate order is necessary)
Output Optical
Interface
Input Electrical
Interface
Applicable Transmission Fiber
Cables
Operating Ambient
Temperature
Relative Humidity
Power Supply Voltage
Power Consumption
Dimensions
(Refer to Outline Dimensions)
Alarm Functions
Performance
2.48832 Gbps
Scrambled NRZ
(External Scrambler is Required)
SMF
550 mm
Optical Connector: SC, FC, MUJ
Launched Power: -10 to -3 dBm
Extinction Ratio: 8.2 dB MIN
Data: AC Coupled 50
鈩?/div>
Clock: AC Coupled 50
鈩?/div>
SMF (SI-10/125)
0 to 75擄C: OD-J6887-0A01
-40 to 85擄C: OD-J6887-HA0
30 to 80 % RH
(Non-condense Condition)
DC: +3.3 V
0.6 W MAX

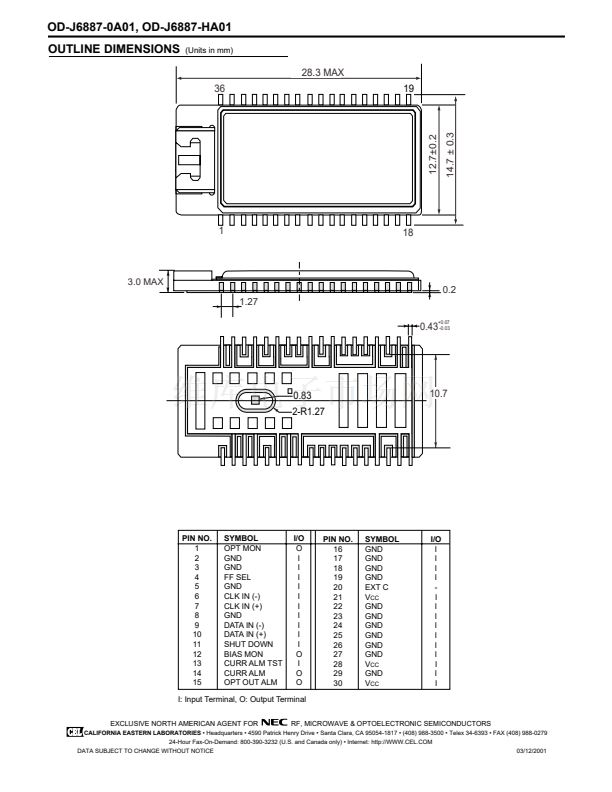

28.3 x 12.7 x 3 (mm)
Optical output down
alarm, LD bias alarm;
PIGTAIL ORDERING INFORMATION
1
Pigtail Optical
Connector
SC
FC
MUJ
Pigtail Part Number
OD-S524-SC-SM
OD-S524-FCPC-SM
OD-S524-MUJ-SM
Note:
1. Pigtail fiber is not included with the product. Separate order is
necessary.
