REFLOW SOLDERABLE SMT PACKAGE
鈥?COMPACT SIZE:
26 x 10 x 3 (mm)
鈥?LOW POWER CONSUMPTION:
0.3 W TYP
鈥?SINGLE +3.3 V POWER SUPPLY
鈥?WIDE OPERATING TEMPERATURE RANGE:
OD-J6860-0A01: 0 to 65擄C
OD-J6860-HA01: -40 to 85擄C
MAJOR PERFORMANCE
鈥?DATA RATE:
622.08 Mbps (STM-4, OC-12)
鈥?P-ECL SIGNAL LOGIC INTERFACE
鈥?ALARM FUNCTIONS:
Optical output down alarm, LD bias alarm
鈥?AUTOMATIC OPTICAL LAUNCHED POWER
STABILIZING
APPLICATIONS
鈥?TELECOMMUNICATIONS NETWORKS
SONET OC-12 SR/IR Interface Compatible
ITU-T Recommendation G.957 I-4/S-4.1 Interface
Compatible
PERFORMANCE CHARACTERISTICS
Parameter
Transmission Speed
Data Format
Pigtail Fiber
(Separate order is necessary)
Output Optical Interface
Input Electrical
Applicable Transmission Fiber
Cables
Ambient Temperature
Relative Humidity
Power Supply Voltage
Power Consumption
Dimensions

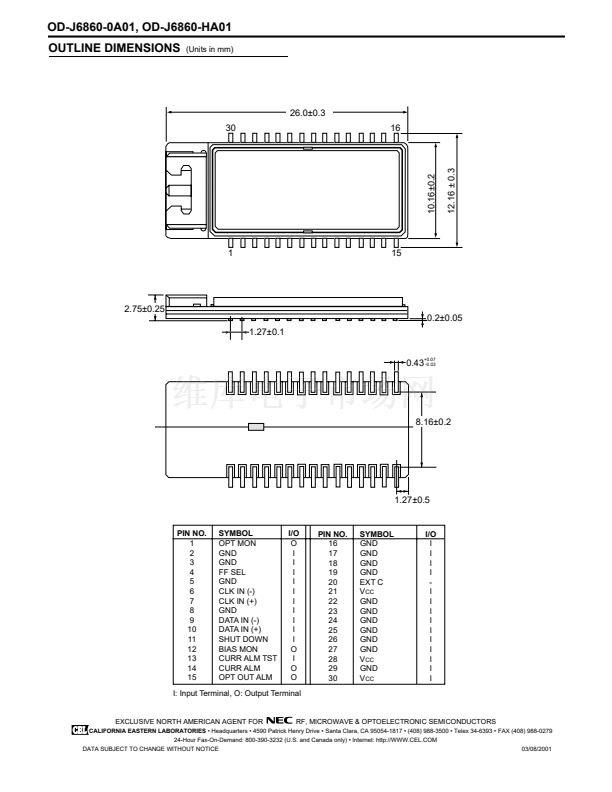

(Refer to Outline Dimensions)
Alarm Functions
Performance
622.08 Mbps
Scrambled NRZ
(External Scrambler is Required)
SMF
Pigtail length: 550 mm each
Optical Connector: SC, FC, MUJ
Launched Power: -15 to -8 dBm
Extinction Ratio: 8.2 dB MIN
Interface Data: P-ECL
Clock: P-ECL
SMF (SI-10/125)
0 to 65擄C: OD-J6860-0A01
-40 to 85擄C: OD-J6860-HA01
30 to 80 % RH
(Non-condense Condition)
DC: +3.3 V
0.3 W TYP
26 x 10 x 3 (mm)
Optical output down alarm;
LD bias alarm
PIGTAIL ORDERING INFORMATION
1
Pigtail Optical Connector
SC
FC
MUJ
Part Number
OD-S524-SC-SM
OD-S524-FCPC-SM
OD-S524-MUJ-SM
Note:
1. Pigtail fiber is not included with the product. Separate order is
necessary.
California Eastern Laboratories
