DESIGNED FOR SONET/SDH/ATM SYSTEMS
鈥?REFLOW SOLDERABLE SMT PACKAGE
鈥?COMPACT SIZE:
26 x 10 x 3 (mm)
鈥?LOW POWER CONSUMPTION:
0.3 W TYP
鈥?SINGLE +3.3 V POWER SUPPLY
鈥?WIDE OPERATING TEMPERATURE RANGE:
-40 to +85擄C
MAJOR PERFORMANCE
鈥?DATA RATE:
155.52 Mbps (STM-1, OC-3)
鈥?P-ECL SIGNAL LOGIC INTERFACE
鈥?ALARM FUNCTIONS:
Optical input down alarm
鈥?PLL CLOCK RECOVERY
APPLICATIONS
鈥?TELECOMMUNICATIONS NETWORKS
STM-1 L-1.1, L-1.2 and L-1.3 Interface Compatible
(ITU-T Recommendation G.957)
PERFORMANCE CHARACTERISTICS
Parameter
Transmission Speed
Data Format
Pigtail Fiber
(Separate order is necessary)
Input Optical Interface
Bit Error Rate
Output Electrical Interface
Applicable Transmission Fiber
Cable
Operating Ambient
Temperature
Relative Humidity
Power Supply Voltage
Power Consumption
Dimensions

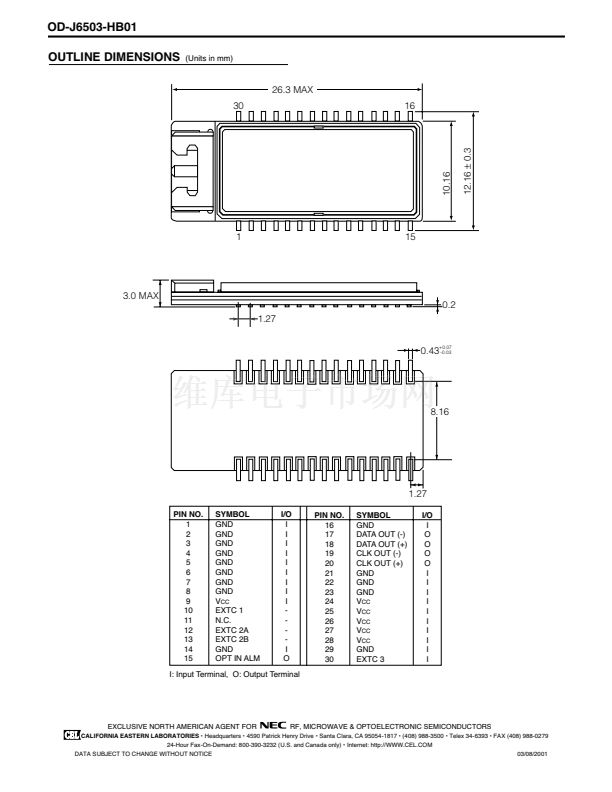

(Refer to Outline Dimensions)
Alarm Functions
Performance
155.52 Mbps
Scrambled NRZ
(External Scrambler is Required)
SMF
Pigtail length: 550 mm each
Optical Connector: SC, FC, MUJ
Sensitivity: -34 dBm MAX
Overload: -10 dBm MIN
1 x 10
-16
MAX
Data: P-ECL
Clock: P-ECL
SMF (SI-10/125)
SONET OC-3 LR-1, LR-2, LR-3 Interface Compatible
(GR-253-Core Requirements)
PIGTAIL ORDERING INFORMATION
1
Pigtail Optical
Connector
SC
FC
MUJ
Part Number
OD-S524-SC-SM
OD-S524-FCPC-SM
OD-S524-MUJ-SM
Note:
1. Pigtail fiber is not included with the product. Separate order is
required.
-40 to 85擄C
30 to 80 % RH
(Non-condense Condition)
DC: +3.3 V
0.3 W TYP
26 x 10 x 3(mm)
Optical input down alarm
California Eastern Laboratories
