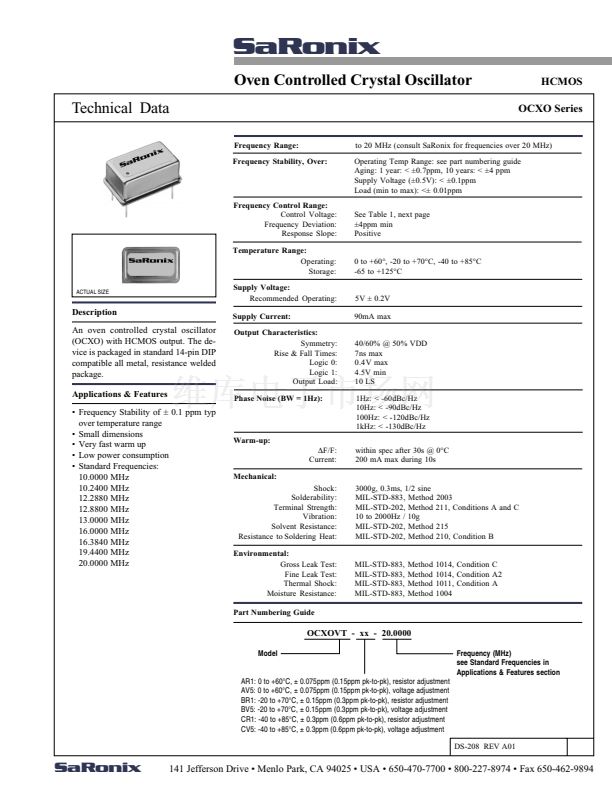

SaRonix
Oven Controlled Crystal Oscillator
Technical Data
Frequency Range:
Frequency Stability, Over:
HCMOS
OCXO Series
to 20 MHz (consult SaRonix for frequencies over 20 MHz)
Operating Temp Range: see part numbering guide
Aging: 1 year: < 鹵0.7ppm, 10 years: < 鹵4 ppm
Supply Voltage (鹵0.5V): < 鹵0.1ppm
Load (min to max): <鹵 0.01ppm
See Table 1, next page
鹵4ppm min
Positive
Frequency Control Range:
Control Voltage:
Frequency Deviation:
Response Slope:
Temperature Range:
Operating:
Storage:
ACTUAL SIZE
0 to +60擄, -20 to +70擄C, -40 to +85擄C
-65 to +125擄C
Supply Voltage:
Recommended Operating:
Supply Current:
Output Characteristics:
Symmetry:
Rise & Fall Times:
Logic 0:
Logic 1:
Output Load:
Phase Noise (BW = 1Hz):
5 V 鹵 0.2V
90mA max
Description
An oven controlled crystal oscillator
(OCXO) with HCMOS output. The de-
vice is packaged in standard 14-pin DIP
compatible all metal, resistance welded
package.
Applications & Features
鈥?Frequency Stability of 鹵 0.1 ppm typ
over temperature range
鈥?Small dimensions
鈥?Very fast warm up
鈥?Low power consumption
鈥?Standard Frequencies:
10.0000 MHz
10.2400 MHz
12.2880 MHz
12.8800 MHz
13.0000 MHz
16.0000 MHz
16.3840 MHz
19.4400 MHz
20.0000 MHz
40/60% @ 50% VDD
7ns max
0.4 V max
4.5V min
10 LS
1Hz: < -60dBc/Hz
10Hz: < -90dBc/Hz
100Hz: < -120dBc/Hz
1kHz: < -130dBc/Hz
within spec after 30s @ 0擄C
200 mA max during 10s
Warm-up:
鈭咶/F:
Current:
Mechanical:
Shock:
Solderability:
Terminal Strength:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
Environmental:
Gross Leak Test:
Fine Leak Test:
Thermal Shock:
Moisture Resistance:
Part Numbering Guide
3000g, 0.3ms, 1/2 sine
MIL-STD-883, Method 2003
MIL-STD-202, Method 211, Conditions A and C
10 to 2000Hz / 10g
MIL-STD-202, Method 215
MIL-STD-202, Method 210, Condition B
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
Method
Method
Method
Method
1014, Condition C
1014, Condition A2
1011, Condition A
1004
OCXOVT - xx - 20.0000
Model
Frequency (MHz)
see Standard Frequencies in
Applications & Features section
AR1: 0 to +60擄C, 鹵 0.075ppm (0.15ppm pk-to-pk), resistor adjustment
AV5: 0 to +60擄C, 鹵 0.075ppm (0.15ppm pk-to-pk), voltage adjustment
BR1: -20 to +70擄C, 鹵 0.15ppm (0.3ppm pk-to-pk), resistor adjustment
BV5: -20 to +70擄C, 鹵 0.15ppm (0.3ppm pk-to-pk), voltage adjustment
CR1: -40 to +85擄C, 鹵 0.3ppm (0.6ppm pk-to-pk), resistor adjustment
CV5: -40 to +85擄C, 鹵 0.3ppm (0.6ppm pk-to-pk), voltage adjustment
DS-208 REV A01
SaRonix
141 Jefferson Drive 鈥?Menlo Park, CA 94025 鈥?USA 鈥?650-470-7700 鈥?800-227-8974 鈥?Fax 650-462-9894
