OKI Electronic Components
OAT1523S-OLT-B
Broad band-PON Optical Module
FEDFOAT1523-OLT-01
Issue Data : Jan. 15, 2002
APPLICATION
路 Optical transceiver for Broad band- PON application (ITU-T Rec. G.983.3)
FEATURES
路 1- fiber bi- directional transmission by incorporated WDM
路 Burst signal transmission
路 +3.3V single power supply
SPECIFICATION
Parameter
ITU-T Rec. G983 .3
Bit rate
Transmission distance
Transmission mode
Optical wavelength
Maximum reflectance of equipment, measured at
transmitter wavelength
Mean launched power range
Minimum extinction ratio
Tolerance to the transmitter incident light power
Launched optical power w/o input
to the transmitter
Maximum spectral width
Side mode suppression ratio
Maximum reflectance of equipment, measured at
receiver wavelength
Received optical power [BER = 10 -10]
Consecutive identical digit immunity
Tolerance to the reflected optical power
Power consumption
Laser diode
Photo diode
Operating temperature

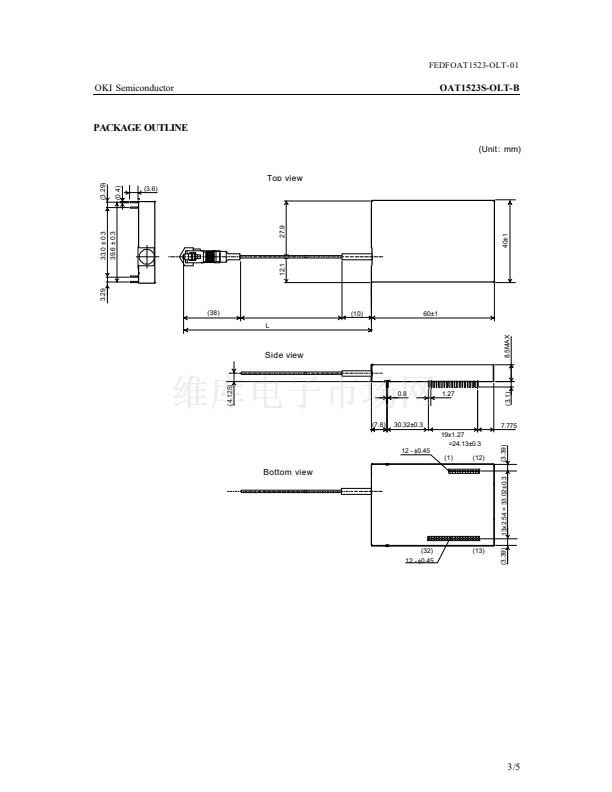

Dimension
Unit
Mb/s
km
nm
dB
dBm
dB
dB
dBm
nm
dB
dB
dBm
bit
dB
W
OAT1523S-OLT-B
ClassB
155.52
鈮?/div>
20
Tx: continuous, Rx: burst
TX: 1480 to 1500
Rx: 1260 to 1360
-
鈥?
to +2
鈮?/div>
10
鈮?/div>
鈥?5
-
鈮?/div>
1 (@ 鈥?0 dB)
鈮?/div>
30
鈮?/div>
鈥?0
鈥?3
to 鈥?
鈮?/div>
72
鈮?/div>
10
1.2
1.49 碌m DFB-LD
PIN-PD
0 to 70
40 脳60 脳 8.5
擄C
mm
1/5
