NZT44H8 Datasheet

  • NZT44H8

  • NPN Power Amplifier

  • 156.37KB

  • 4頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

D44H8 / NZT44H8
Discrete POWER & Signal
Technologies
D44H8
NZT44H8
C
B
E
C
E
C
TO-220
SOT-223
B
NPN Power Amplifier
This device is designed for power amplifier, regulator and switching
circuits where speed is important. Sourced from Process 4Q.
Absolute Maximum Ratings*
Symbol
V
CEO
I
C
T
J
, T
stg
Collector-Emitter Voltage
Collector Current - Continuous
TA = 25擄C unless otherwise noted
Parameter
Value
60
8.0
-55 to +150
Units
V
A
擄C
Operating and Storage Junction Temperature Range
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

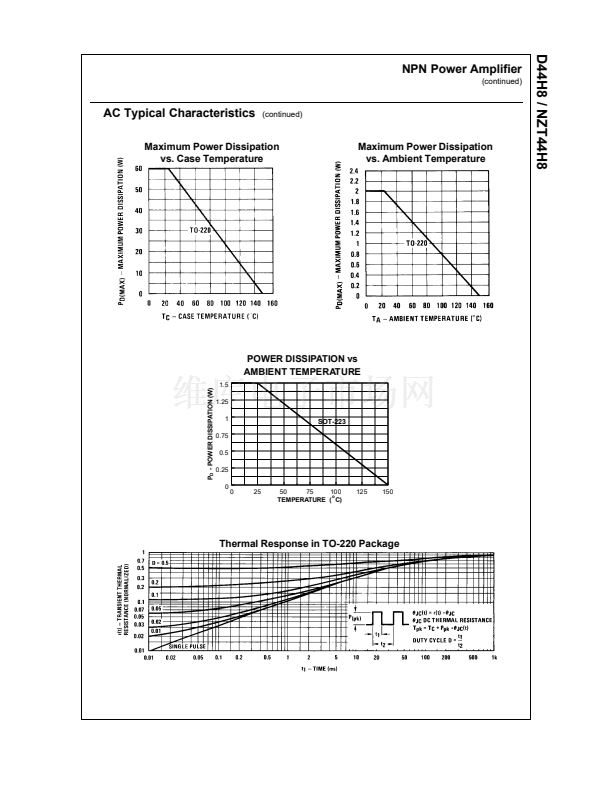

Thermal Characteristics
Symbol
P
D
R
胃
JC
R
胃JA
TA = 25擄C unless otherwise noted
Characteristic
Total Device Dissipation
Derate above 25擄C
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
D44H8
60
480
2.1
62.5
Max
*NZT44H8
1.5
12
83.3
2
Units
W
mW/擄C
擄C/W
擄C/W
*
Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm .
漏
1997 Fairchild Semiconductor Corporation

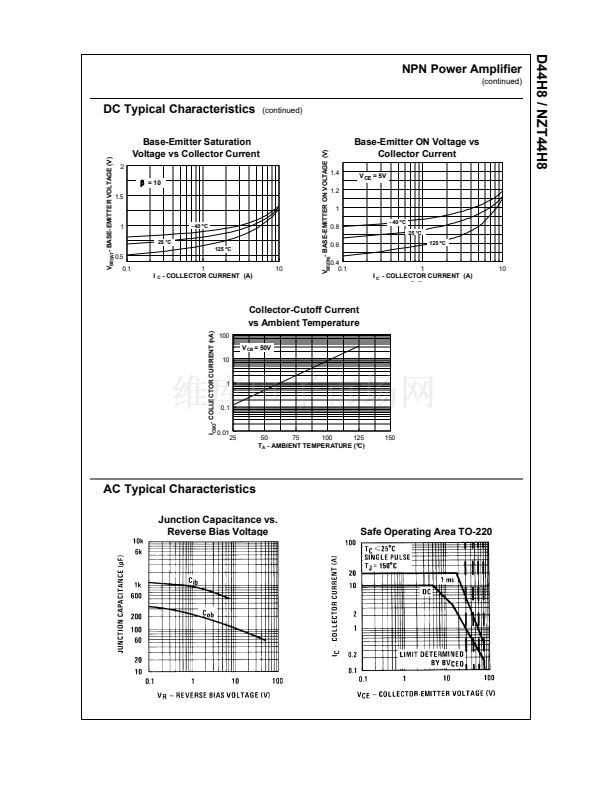

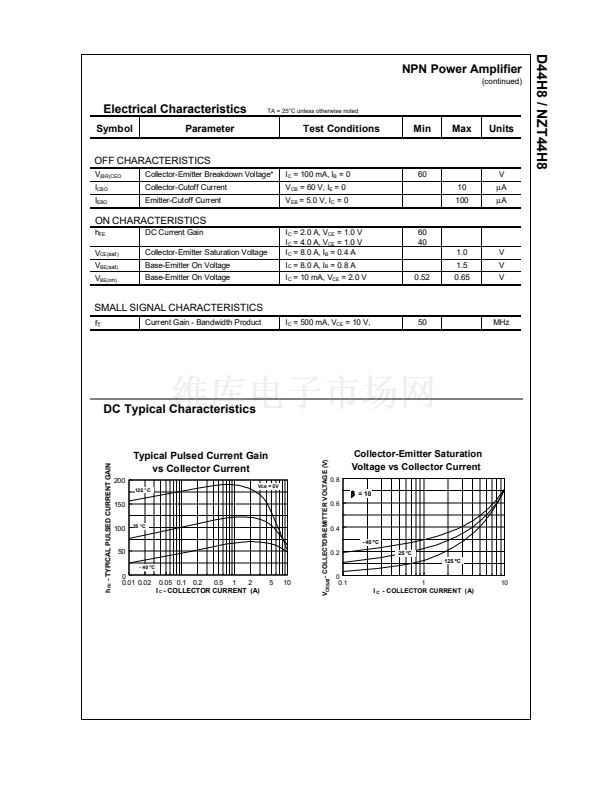

NZT44H8 產品屬性

  • 4,000

  • 分離式半導體產品

  • 晶體管(BJT) - 單路

  • -

  • NPN

  • 8A

  • 60V

  • 1V @ 400mA，8A

  • -

  • 40 @ 4A，1V

  • 1.5W

  • 50MHz

  • 表面貼裝

  • TO-261-4，TO-261AA

  • SOT-223-3

  • 帶卷 (TR)
