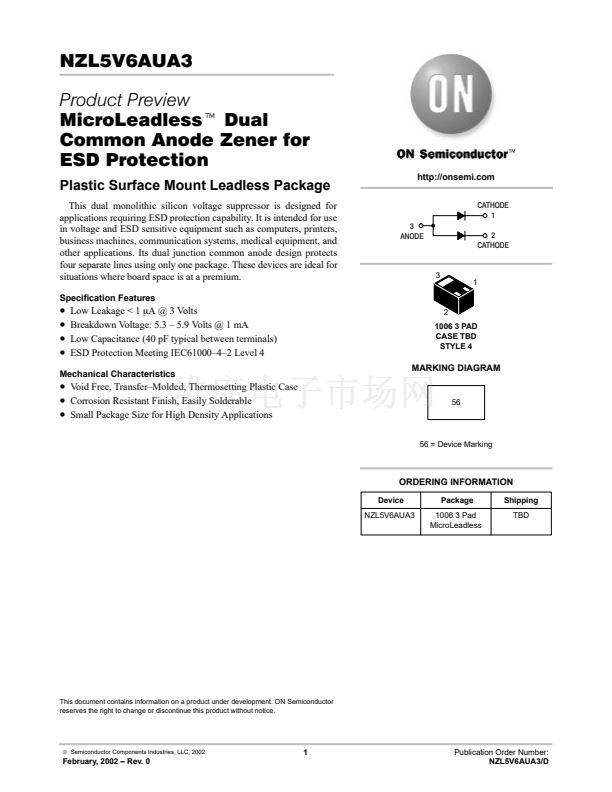

NZL5V6AUA3
Product Preview
MicroLeadlesst Dual
Common Anode Zener for
ESD Protection
Plastic Surface Mount Leadless Package
This dual monolithic silicon voltage suppressor is designed for
applications requiring ESD protection capability. It is intended for use
in voltage and ESD sensitive equipment such as computers, printers,
business machines, communication systems, medical equipment, and
other applications. Its dual junction common anode design protects
four separate lines using only one package. These devices are ideal for
situations where board space is at a premium.
Specification Features
http://onsemi.com
CATHODE
1
2
CATHODE
3
ANODE
3
1
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Low Leakage < 1
mA
@ 3 Volts
Breakdown Voltage: 5.3 鈥?5.9 Volts @ 1 mA
Low Capacitance (40 pF typical between terminals)
ESD Protection Meeting IEC61000鈥?鈥? Level 4
2
1006 3 PAD
CASE TBD
STYLE 4
Mechanical Characteristics
MARKING DIAGRAM
鈥?/div>
Void Free, Transfer鈥揗olded, Thermosetting Plastic Case
鈥?/div>
Corrosion Resistant Finish, Easily Solderable
鈥?/div>
Small Package Size for High Density Applications
56
56 = Device Marking
ORDERING INFORMATION
Device
NZL5V6AUA3
Package
1006 3 Pad
MicroLeadless
Shipping
TBD
This document contains information on a product under development. ON Semiconductor
reserves the right to change or discontinue this product without notice.
漏
Semiconductor Components Industries, LLC, 2002
1
February, 2002 鈥?Rev. 0
Publication Order Number:
NZL5V6AUA3/D
