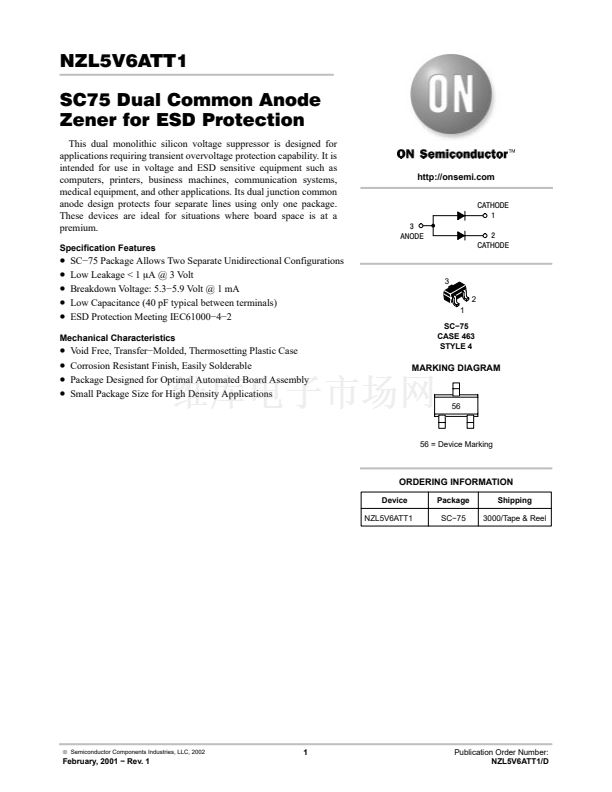

NZL5V6ATT1
SC75 Dual Common Anode
Zener for ESD Protection
This dual monolithic silicon voltage suppressor is designed for
applications requiring transient overvoltage protection capability. It is
intended for use in voltage and ESD sensitive equipment such as
computers, printers, business machines, communication systems,
medical equipment, and other applications. Its dual junction common
anode design protects four separate lines using only one package.
These devices are ideal for situations where board space is at a
premium.
Specification Features
http://onsemi.com
CATHODE
1
2
CATHODE
3
ANODE
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
SC鈭?5 Package Allows Two Separate Unidirectional Configurations
Low Leakage < 1
mA
@ 3 Volt
Breakdown Voltage: 5.3鈭?.9 Volt @ 1 mA
Low Capacitance (40 pF typical between terminals)
ESD Protection Meeting IEC61000鈭?鈭?
3
2
1
SC鈭?5
CASE 463
STYLE 4
Mechanical Characteristics
Void Free, Transfer鈭扢olded, Thermosetting Plastic Case
Corrosion Resistant Finish, Easily Solderable
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
MARKING DIAGRAM
56
56 = Device Marking
ORDERING INFORMATION
Device
NZL5V6ATT1
Package
SC鈭?5
Shipping
3000/Tape & Reel
漏
Semiconductor Components Industries, LLC, 2002
1
February, 2001 鈭?Rev. 1
Publication Order Number:
NZL5V6ATT1/D
