NUR30Q

Quad Schottky Barrier

Diodes Array

These Schottky barrier diodes are designed for high speed switching

applications, circuit protection, and voltage clamping. Extremely low

forward voltage reduces conduction loss. Miniature surface mount

package is excellent for hand held and portable applications where

space is limited.

Features:

http://onsemi.com

鈥?/div>

Very Low Forward Voltage

鈥?/div>

Guard Ring Protected

鈥?/div>

Ultra Small SMD Package

Typical Applications:

30 VOLT

QUAD

SCHOTTKY DIODES ARRAY

鈥?/div>

Ultra High鈭扴peed Switching

鈥?/div>

Low Current Rectification

鈥?/div>

Low Power Consumption Applications (e.g. Hand鈭扝eld Devices)

MAXIMUM RATINGS

= 25擄C unless otherwise noted)

Rating

Reverse Voltage

Forward Power Dissipation

@ T

= 25擄C

Derate above 25擄C

Forward Current (DC)

Junction Temperature

Symbol

385

3.1

200

125

mW/擄C

擄C

Value

Unit

Volts

MARKING

DIAGRAM

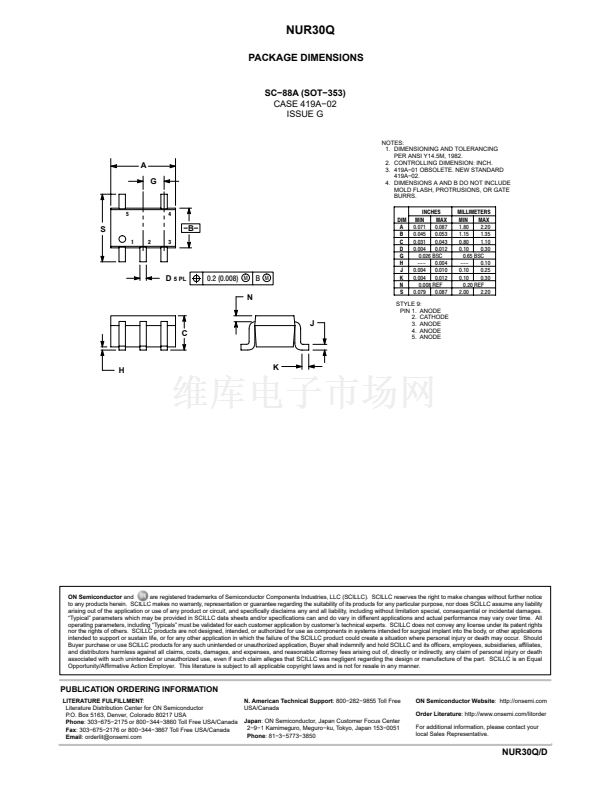

SC鈭?8A/SOT鈭?53

CASE 419A

STYLE 9

R9 = Device Marking

= One Digit Date Code

ORDERING INFORMATION

Device

NUR30QW5T1

Package

SC鈭?8A

Shipping鈥?/div>

3000/Tape & Reel

鈥燜or information on tape and reel specifications,

including part orientation and tape sizes, please

refer to our Tape and Reel Packaging Specifications

Brochure, BRD8011/D.

漏

Semiconductor Components Industries, LLC, 2003

November, 2003 鈭?Rev. 1

Publication Order Number:

NUR30Q/D
