NUP5120/D Datasheet

  • NUP5120/D

  • 5-Line Transient Voltage Suppressor Array

  • 39.98KB

  • 4頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NUP5120X6
5鈭扡ine Transient Voltage
Suppressor Array
This 5鈭抣ine voltage transient suppressor array is designed for
application requiring transient voltage protection capability. It is
intended for use in over鈭抰ransient voltage and ESD sensitive
equipment such as cell phones, portables, computers, printers and
other applications. This device features a monolithic common cathode
design which protects five independent lines in a single
SOT鈭?63 package.
Features
http://onsemi.com
SOT鈭?63 5鈭扡INE TRANSIENT
VOLTAGE SUPPRESSOR
PIN ASSIGNMENT
1
2
3
PIN 1.
2.
3.
4.
5.
6.
6
5
4
CATHODE
ANODE
CATHODE
CATHODE
CATHODE
CATHODE
鈥?/div>
Protects up to 5 Lines in a Single SOT鈭?63 Package
鈥?/div>
ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model
and Class C (Exceeding 400 V) per Machine Model.
鈥?/div>
Compliance with IEC 61000鈭?鈭? (ESD) 15 kV (Air), 8 kV (Contact)
Applications
鈥?/div>
Hand Held Portable Applications
鈥?/div>
Serial and Parallel Ports
鈥?/div>
Notebooks, Desktops, Servers
MAXIMUM RATINGS
(T
J
= 25擄C, unless otherwise specified)
Symbol
P
PK
1
Rating
Peak Power Dissipation
8x20
msec
double exponential waveform,
(Note 1)
Operating Junction Temperature Range
Storage Temperature Range
Lead Solder Temperature 鈥?Maximum
(10 seconds)
Human Body Model (HBM)
Machine Model (MM)
IEC 61000鈭?鈭? Air (ESD)
IEC 61000鈭?鈭? Contact (ESD)
Value
90
Unit
W
6
54
12
3
MARKING
DIAGRAM

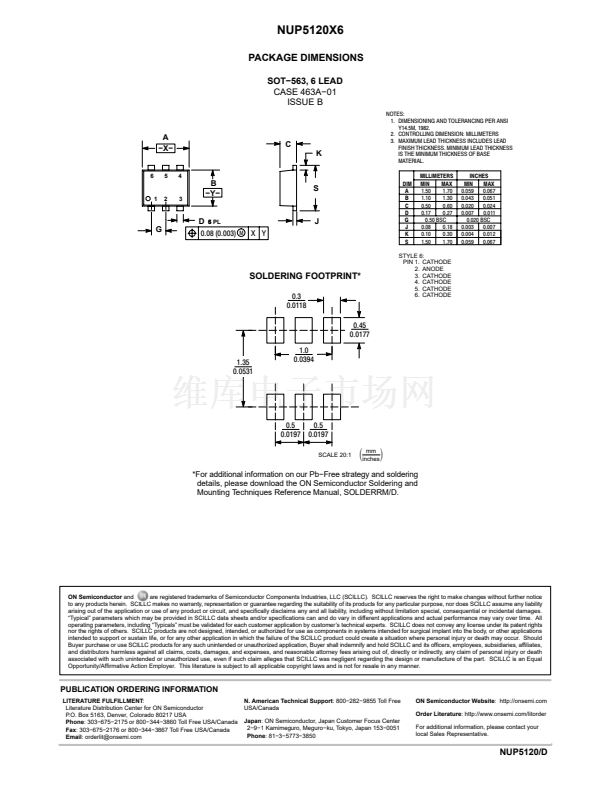

SOT鈭?63
CASE 463A
STYLE 6
RN D
T
J
T
STG
T
L
ESD
鈭?0 to 125
鈭?5 to 150
260
16000
400
15000
8000
擄C
擄C
擄C
V
RN = Specific Device Code
D = Date Code
ORDERING INFORMATION
Device
NUP5120X6T1
Package
SOT鈭?63
Shipping
鈥?/div>
4000/Tape & Reel

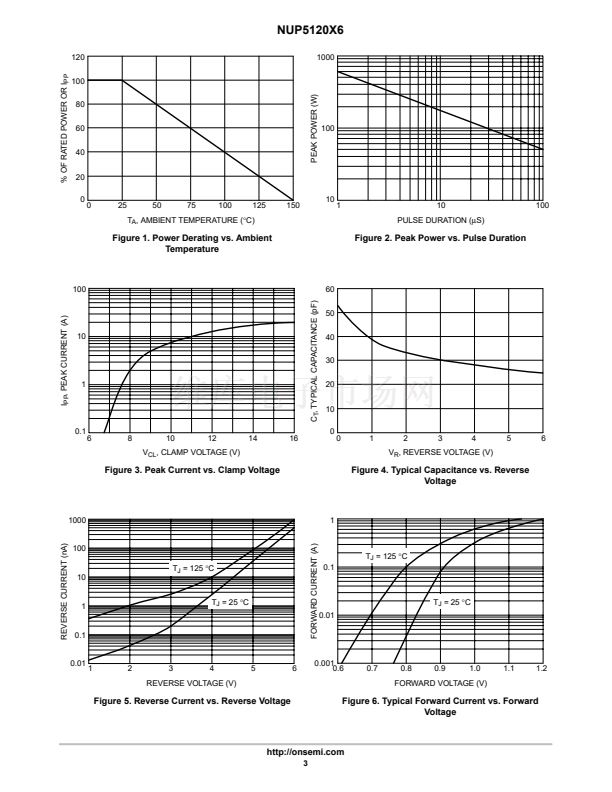

1. Non鈭抮epetitive current pulse per Figure 1.
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
漏
Semiconductor Components Industries, LLC, 2004
1
March, 2004 鈭?Rev. 1
Publication Order Number:
NUP5120/D
