NUP4301MR6T1 Datasheet

  • NUP4301MR6T1

  • Low Capacitance Diode Array for ESD Protection in Four Data ...

  • 4頁

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

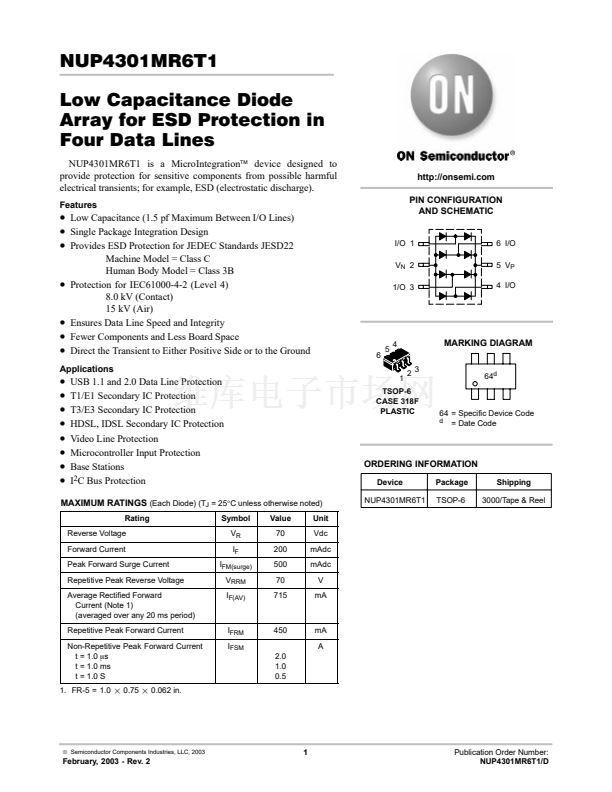

NUP4301MR6T1
Low Capacitance Diode
Array for ESD Protection in
Four Data Lines
NUP4301MR6T1 is a MicroIntegration鈩?device designed to
provide protection for sensitive components from possible harmful
electrical transients; for example, ESD (electrostatic discharge).
Features
http://onsemi.com
PIN CONFIGURATION
AND SCHEMATIC
鈥?/div>
Low Capacitance (1.5 pf Maximum Between I/O Lines)
鈥?/div>
Single Package Integration Design
鈥?/div>
Provides ESD Protection for JEDEC Standards JESD22
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Machine Model = Class C
Human Body Model = Class 3B
Protection for IEC61000-4-2 (Level 4)
8.0 kV (Contact)
15 kV (Air)
Ensures Data Line Speed and Integrity
Fewer Components and Less Board Space
Direct the Transient to Either Positive Side or to the Ground
USB 1.1 and 2.0 Data Line Protection
T1/E1 Secondary IC Protection
T3/E3 Secondary IC Protection
HDSL, IDSL Secondary IC Protection
Video Line Protection
Microcontroller Input Protection
Base Stations
I
2
C Bus Protection
I/O 1
V
N
2
1/O 3
6 I/O
5 V
P
4 I/O
6
5
4
3
MARKING DIAGRAM
Applications
1
2
64
d
TSOP-6
CASE 318F
PLASTIC
64 = Specific Device Code
d
= Date Code
ORDERING INFORMATION
Device
NUP4301MR6T1
Package
TSOP-6
Shipping
3000/Tape & Reel
MAXIMUM RATINGS
(Each Diode) (T
J
= 25擄C unless otherwise noted)
Rating
Reverse Voltage
Forward Current
Peak Forward Surge Current
Repetitive Peak Reverse Voltage
Average Rectified Forward
Current (Note 1)
(averaged over any 20 ms period)
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Current
t = 1.0
ms
t = 1.0 ms
t = 1.0 S
1. FR-5 = 1.0

0.75

0.062 in.
Symbol
V
R
I
F
I
FM(surge)
V
RRM
I
F(AV)
Value
70
200
500
70
715
Unit
Vdc
mAdc
mAdc
V
mA
I
FRM
I
FSM
450
2.0
1.0
0.5
mA
A
漏
Semiconductor Components Industries, LLC, 2003
1
February, 2003 - Rev. 2
Publication Order Number:
NUP4301MR6T1/D

NUP4301MR6T1 產品屬性

  • 3,000

  • 過電壓，電流，溫度裝置

  • TVS - 二極管

  • -

  • -

  • 70V

  • -

  • 4 通道陣列 - 雙向

  • 表面貼裝

  • SC-74，SOT-457

  • SC-74

  • 帶卷 (TR)

  • NUP4301MR6T1OS
