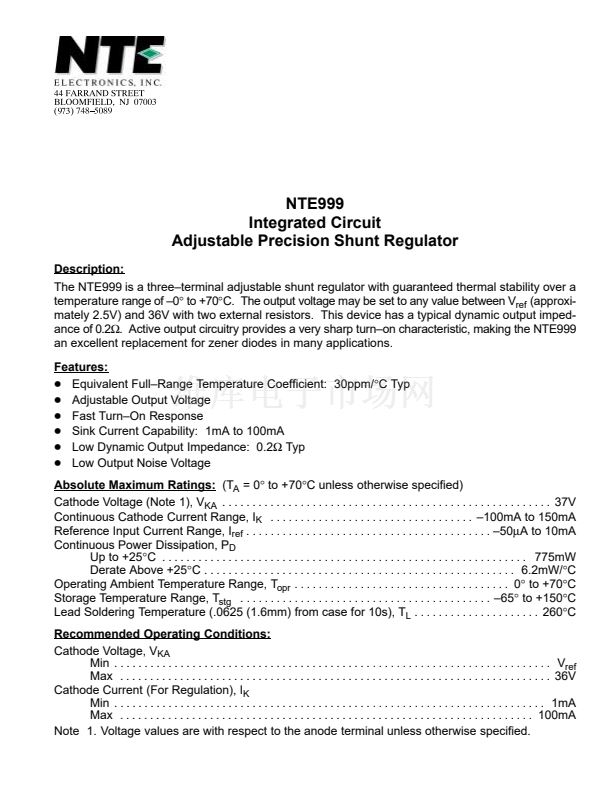

NTE999
Integrated Circuit
Adjustable Precision Shunt Regulator
Description:
The NTE999 is a three鈥搕erminal adjustable shunt regulator with guaranteed thermal stability over a
temperature range of 鈥?擄 to +70擄C. The output voltage may be set to any value between V
ref
(approxi-
mately 2.5V) and 36V with two external resistors. This device has a typical dynamic output imped-
ance of 0.2鈩? Active output circuitry provides a very sharp turn鈥搊n characteristic, making the NTE999
an excellent replacement for zener diodes in many applications.
Features:
D
Equivalent Full鈥揜ange Temperature Coefficient: 30ppm/擄C Typ
D
Adjustable Output Voltage
D
Fast Turn鈥揙n Response
D
Sink Current Capability: 1mA to 100mA
D
Low Dynamic Output Impedance: 0.2鈩?Typ
D
Low Output Noise Voltage
Absolute Maximum Ratings:
(T
A
= 0擄 to +70擄C unless otherwise specified)
Cathode Voltage (Note 1), V
KA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37V
Continuous Cathode Current Range, I
K
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?00mA to 150mA
Reference Input Current Range, I
ref
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0碌A(chǔ) to 10mA
Continuous Power Dissipation, P
D
Up to +25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 775mW
Derate Above +25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2mW/擄C
Operating Ambient Temperature Range, T
opr
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0擄 to +70擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Lead Soldering Temperature (.0625 (1.6mm) from case for 10s), T
L
. . . . . . . . . . . . . . . . . . . . . 260擄C
Recommended Operating Conditions:
Cathode Voltage, V
KA
Min . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
ref
Max . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36V
Cathode Current (For Regulation), I
K
Min . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1mA
Max . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
Note 1. Voltage values are with respect to the anode terminal unless otherwise specified.
