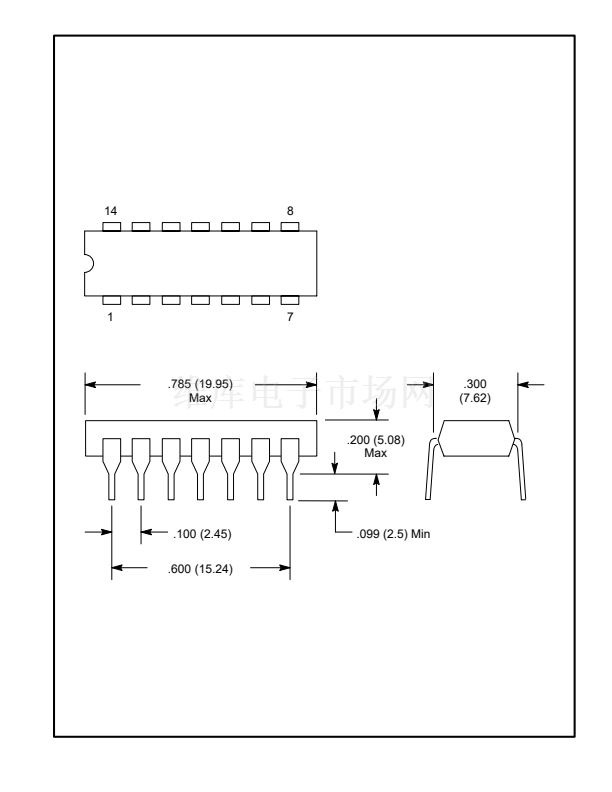

The NTE997 is a monolithic quad operational amplifier in a 14鈥揕ead DIP type package consisting of
four independent high gain, internally compensated operational amplifiers. The specifically designed
low noise input transistors allow the NTE997 to be used in low noise signal processing applications
such as audio preamplifiers and signal conditioners. The simplified output stage completely elimi-
nates crossover distortion under any load conditions, has large source and sink capacity, and is short鈥?/div>
circuit protected. A novel current source stabilizes output parameters over a wide power supply volt-
age range.
Features:
D
Unity Gain Bandwidth: 3MHz
D
Continuous Short Circuit Protection
D
No Frequency Compensation Required
D
No Latch鈥揢p
D
Large Common Mode and Differential Voltage Ranges
D
Parameter Tracking Over Temperature Range
D
Gain and Phase Match Between Amplifiers
Absolute Maximum Ratings:
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
鹵18V
Differential Input Voltage (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
鹵30V
Input Voltage (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
鹵15V
Internal Power Dissipation (T
A
= +70擄C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 670mW
Derate Above 70擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3mW/擄C
Output Short Circuit Duration (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indifinite
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +125擄C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +125擄C
Lead Temperature (During Soldering, 10sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +260擄C
Note 1. For supply voltage less than
鹵15V,
the absolute maximum input voltage is equal to the supply
voltage.
Note 2. Short鈥揷ircuit may be to GND, one amplifier only. I
SC
= 45mA (Typical).
