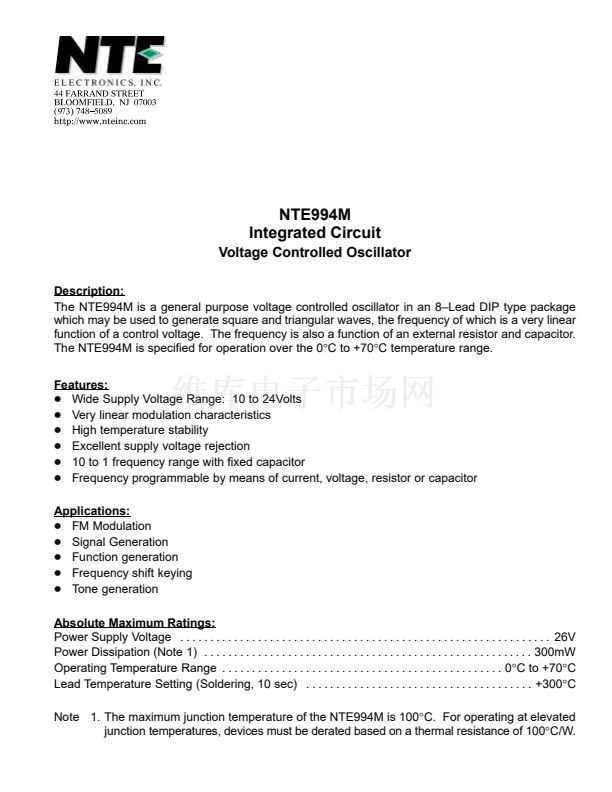

NTE994M
Integrated Circuit
Voltage Controlled Oscillator
Description:

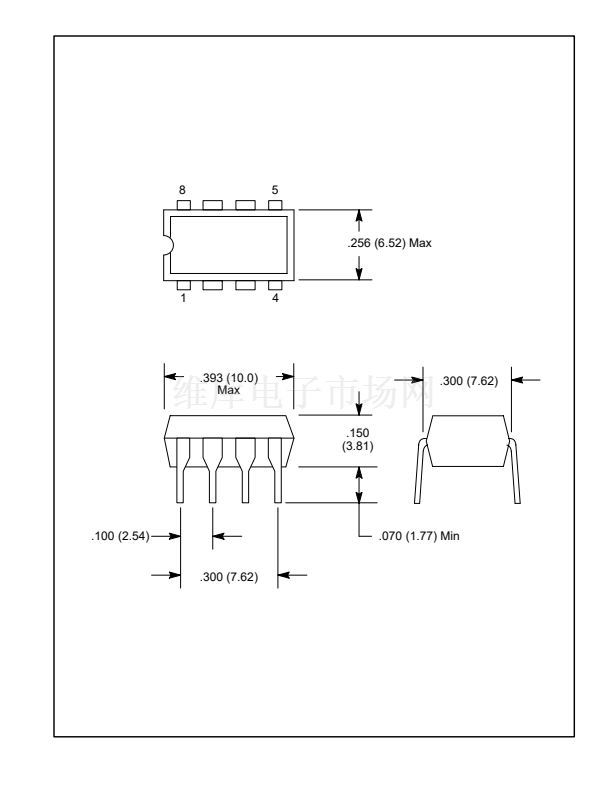

The NTE994M is a general purpose voltage controlled oscillator in an 8鈥揕ead DIP type package
which may be used to generate square and triangular waves, the frequency of which is a very linear
function of a control voltage. The frequency is also a function of an external resistor and capacitor.
The NTE994M is specified for operation over the 0擄C to +70擄C temperature range.
Features:
D
Wide Supply Voltage Range: 10 to 24Volts
D
Very linear modulation characteristics
D
High temperature stability
D
Excellent supply voltage rejection
D
10 to 1 frequency range with fixed capacitor
D
Frequency programmable by means of current, voltage, resistor or capacitor
Applications:
D
FM Modulation
D
Signal Generation
D
Function generation
D
Frequency shift keying
D
Tone generation
Absolute Maximum Ratings:
Power Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26V
Power Dissipation (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mW
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0擄C to +70擄C
Lead Temperature Setting (Soldering, 10 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300擄C
Note 1. The maximum junction temperature of the NTE994M is 100擄C. For operating at elevated
junction temperatures, devices must be derated based on a thermal resistance of 100擄C/W.
