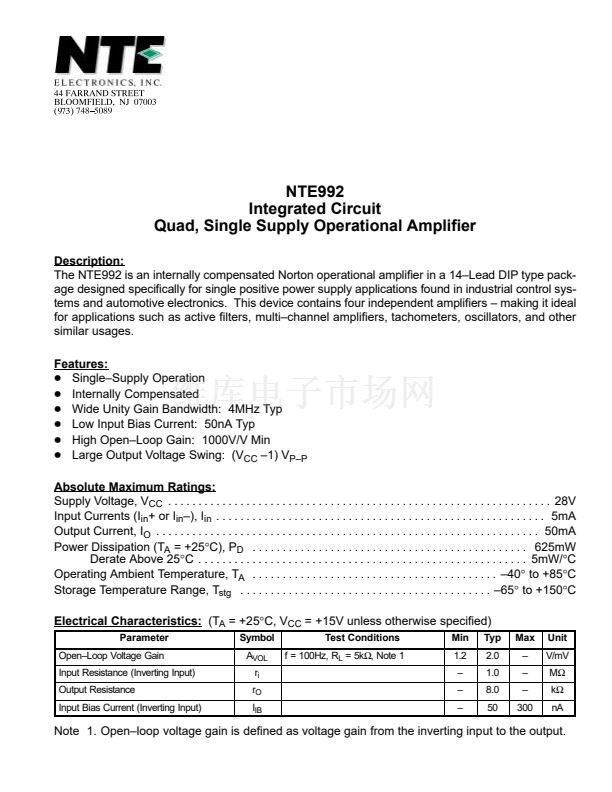

NTE992
Integrated Circuit
Quad, Single Supply Operational Amplifier
Description:
The NTE992 is an internally compensated Norton operational amplifier in a 14鈥揕ead DIP type pack-
age designed specifically for single positive power supply applications found in industrial control sys-
tems and automotive electronics. This device contains four independent amplifiers 鈥?making it ideal
for applications such as active filters, multi鈥揷hannel amplifiers, tachometers, oscillators, and other
similar usages.
Features:
D
Single鈥揝upply Operation
D
Internally Compensated
D
Wide Unity Gain Bandwidth: 4MHz Typ
D
Low Input Bias Current: 50nA Typ
D
High Open鈥揕oop Gain: 1000V/V Min
D
Large Output Voltage Swing: (V
CC
鈥?) V
P鈥揚(yáng)
Absolute Maximum Ratings:
Supply Voltage, V
CC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28V
Input Currents (I
in
+ or I
in
鈥?, I
in
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mA
Output Current, I
O
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Power Dissipation (T
A
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625mW
Derate Above 25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mW/擄C
Operating Ambient Temperature, T
A
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0擄 to +85擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Electrical Characteristics:
(T
A
= +25擄C, V
CC
= +15V unless otherwise specified)
Parameter
Open鈥揕oop Voltage Gain
Input Resistance (Inverting Input)
Output Resistance
Input Bias Current (Inverting Input)
Symbol
A
VOL
r
i
r
O
I
IB
Test Conditions
f = 100Hz, R
L
= 5k鈩? Note 1
Min
1.2
鈥?/div>
鈥?/div>
鈥?/div>
Typ
2.0
1.0
8.0
50
Max
鈥?/div>
鈥?/div>
鈥?/div>
300
Unit
V/mV
M鈩?/div>
k鈩?/div>
nA
Note 1. Open鈥搇oop voltage gain is defined as voltage gain from the inverting input to the output.
