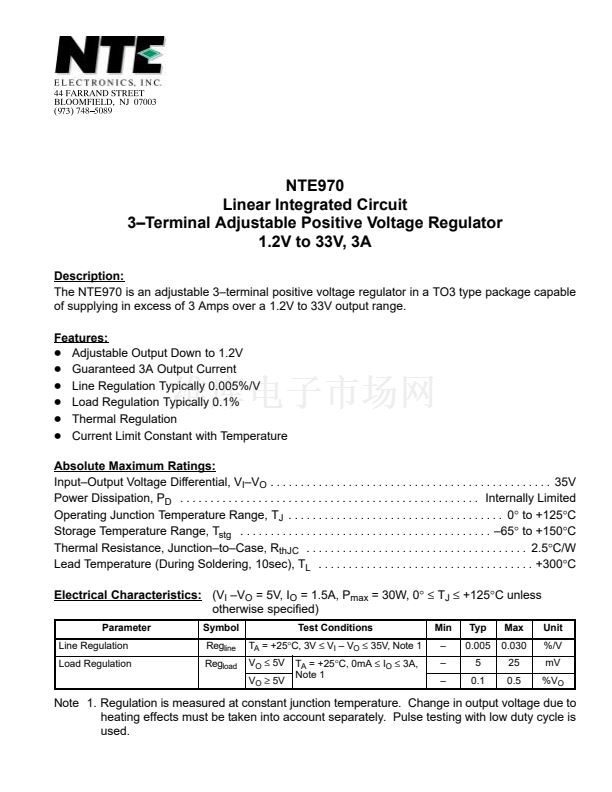

NTE970
Linear Integrated Circuit
3鈥揟erminal Adjustable Positive Voltage Regulator
1.2V to 33V, 3A
Description:
The NTE970 is an adjustable 3鈥搕erminal positive voltage regulator in a TO3 type package capable
of supplying in excess of 3 Amps over a 1.2V to 33V output range.
Features:
D
Adjustable Output Down to 1.2V
D
Guaranteed 3A Output Current
D
Line Regulation Typically 0.005%/V
D
Load Regulation Typically 0.1%
D
Thermal Regulation
D
Current Limit Constant with Temperature
Absolute Maximum Ratings:
Input鈥揙utput Voltage Differential, V
I
鈥揤
O
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35V
Power Dissipation, P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internally Limited
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0擄 to +125擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Thermal Resistance, Junction鈥搕o鈥揅ase, R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5擄C/W
Lead Temperature (During Soldering, 10sec), T
L
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300擄C

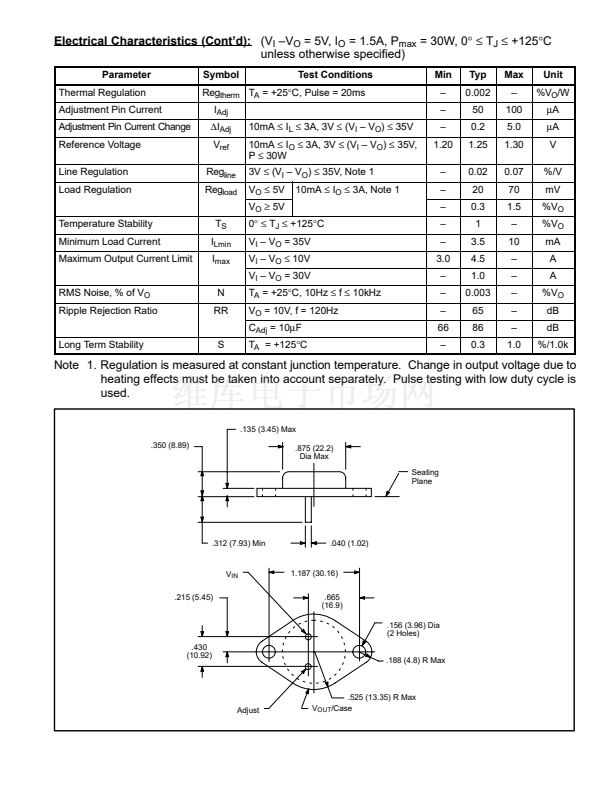

Electrical Characteristics:
(V
I
鈥揤
O
= 5V, I
O
= 1.5A, P
max
= 30W, 0擄
鈮?/div>
T
J
鈮?/div>
+125擄C unless
otherwise specified)
Parameter
Line Regulation
Load Regulation
Symbol
Reg
line
Reg
load
V
O
鈮?/div>
5V
V
O
鈮?/div>
5V
Test Conditions
T
A
= +25擄C, 3V
鈮?/div>
V
I
鈥?V
O
鈮?/div>
35V, Note 1
T
A
= +25擄C, 0mA
鈮?/div>
I
O
鈮?/div>
3A,
Note 1
Min
鈥?/div>
鈥?/div>
鈥?/div>
Typ
0.005
5
0.1
Max
0.030
25
0.5
Unit
%/V
mV
%V
O
Note 1. Regulation is measured at constant junction temperature. Change in output voltage due to
heating effects must be taken into account separately. Pulse testing with low duty cycle is
used.
