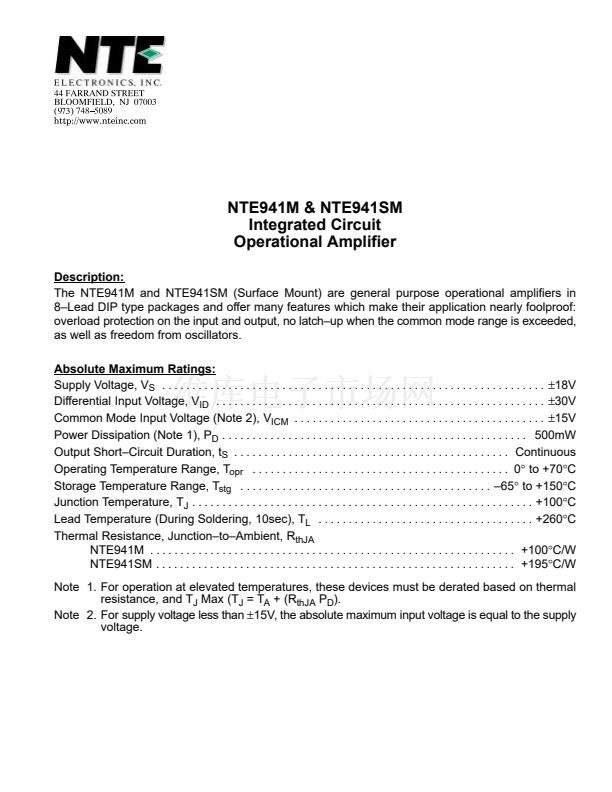

NTE941M & NTE941SM
Integrated Circuit
Operational Amplifier
Description:
The NTE941M and NTE941SM (Surface Mount) are general purpose operational amplifiers in
8鈥揕ead DIP type packages and offer many features which make their application nearly foolproof:
overload protection on the input and output, no latch鈥搖p when the common mode range is exceeded,
as well as freedom from oscillators.
Absolute Maximum Ratings:
Supply Voltage, V
S
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
鹵18V
Differential Input Voltage, V
ID
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
鹵30V
Common Mode Input Voltage (Note 2), V
ICM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
鹵15V
Power Dissipation (Note 1), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW
Output Short鈥揅ircuit Duration, t
S
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
Operating Temperature Range, T
opr
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0擄 to +70擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Junction Temperature, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +100擄C
Lead Temperature (During Soldering, 10sec), T
L
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +260擄C
Thermal Resistance, Junction鈥搕o鈥揂mbient, R
thJA
NTE941M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +100擄C/W
NTE941SM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +195擄C/W
Note 1. For operation at elevated temperatures, these devices must be derated based on thermal
resistance, and T
J
Max (T
J
= T
A
+ (R
thJA
P
D
).
Note 2. For supply voltage less than
鹵15V,
the absolute maximum input voltage is equal to the supply
voltage.
