NTE727
Integrated Circuit
Four Independent AC Amplifiers
Description:

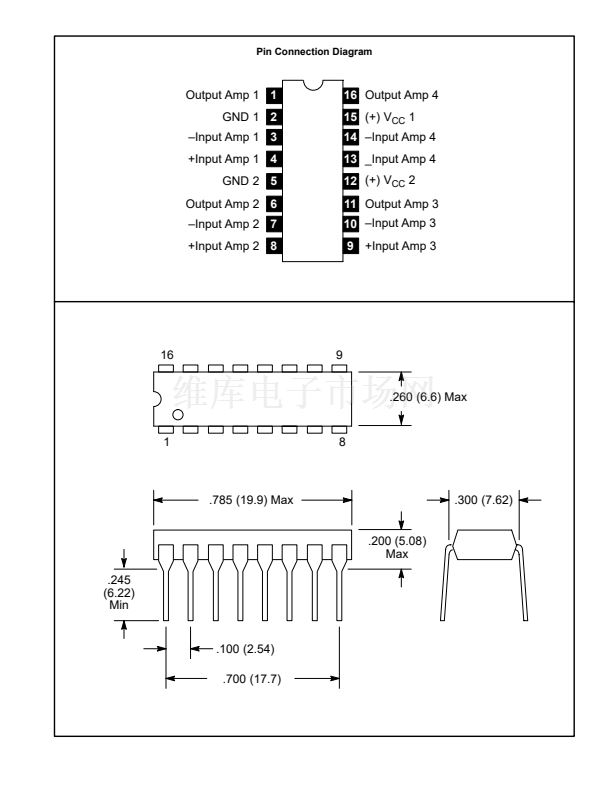

The NTE727 is a silicon monolithic integrated circuit in a 16鈥揕ead DIP type package consisting of four
independent identical AC amplifiers which can operate from a single鈥揺nded power supply.
The amplifiers include internal DC bias and feedback to provide temperature鈥搒tabilized operation.
They may be used in a wide variety of AC applications in which operational amplifiers have previously
been used.
Each high gain amplifier has a high impedance non鈥搃nverting input, and a lower impedance inverting
input for the application of feedback. Two power鈥搒upply terminals and two ground terminals are pro-
vided to reduce internal and external coupling between amplifiers.
Features:
D
Four AC Amplifiers on a Common Substrate
D
Independently Accessible Inputs and Outputs
D
Operates from a Single鈥揈nded Supply
D
Noise Figure (Each Amp): 2dB Typ @ 1kHz
D
High Voltage Gain (Each Amp): 53dB Min
D
High Input Resistance (Each Amp): 90k鈩?Typ
D
Undistorted Output Voltage (Each Amp): 2V
rms
Min
D
Output Impedance (Each Amp): 1k鈩?Typ
D
Open鈥揕oop Bandwidth (Each Amp): 300kHz Typ
Applications:
D
Multi鈥揅hannel or Cascade Operation
D
Low鈥揕evel Preamplifiers
D
Equalizers
D
Linear Signal Mixers
D
Tone Generators
D
Multivibrators
D
AC Intergrators
