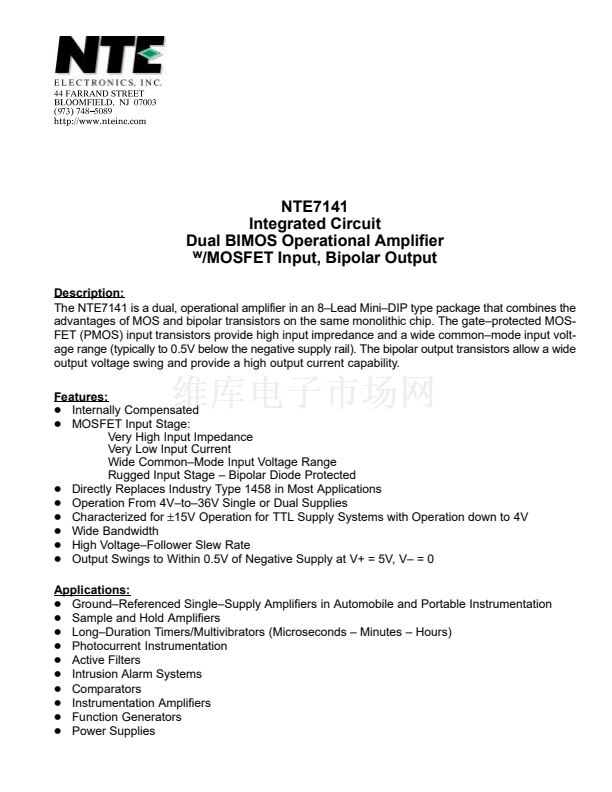

NTE7141

Integrated Circuit

Dual BIMOS Operational Amplifier

w

/MOSFET Input, Bipolar Output

Description:

The NTE7141 is a dual, operational amplifier in an 8鈥揕ead Mini鈥揇IP type package that combines the

advantages of MOS and bipolar transistors on the same monolithic chip. The gate鈥損rotected MOS-

FET (PMOS) input transistors provide high input impredance and a wide common鈥搈ode input volt-

age range (typically to 0.5V below the negative supply rail). The bipolar output transistors allow a wide

output voltage swing and provide a high output current capability.

Features:

D

Internally Compensated

D

MOSFET Input Stage:

Very High Input Impedance

Very Low Input Current

Wide Common鈥揗ode Input Voltage Range

Rugged Input Stage 鈥?Bipolar Diode Protected

D

Directly Replaces Industry Type 1458 in Most Applications

D

Operation From 4V鈥搕o鈥?6V Single or Dual Supplies

D

Characterized for

鹵15V

Operation for TTL Supply Systems with Operation down to 4V

D

Wide Bandwidth

D

High Voltage鈥揊ollower Slew Rate

D

Output Swings to Within 0.5V of Negative Supply at V+ = 5V, V鈥?= 0

Applications:

D

Ground鈥揜eferenced Single鈥揝upply Amplifiers in Automobile and Portable Instrumentation

D

Sample and Hold Amplifiers

D

Long鈥揇uration Timers/Multivibrators (Microseconds 鈥?Minutes 鈥?Hours)

D

Photocurrent Instrumentation

D

Active Filters

D

Intrusion Alarm Systems

D

Comparators

D

Instrumentation Amplifiers

D

Function Generators

D

Power Supplies
