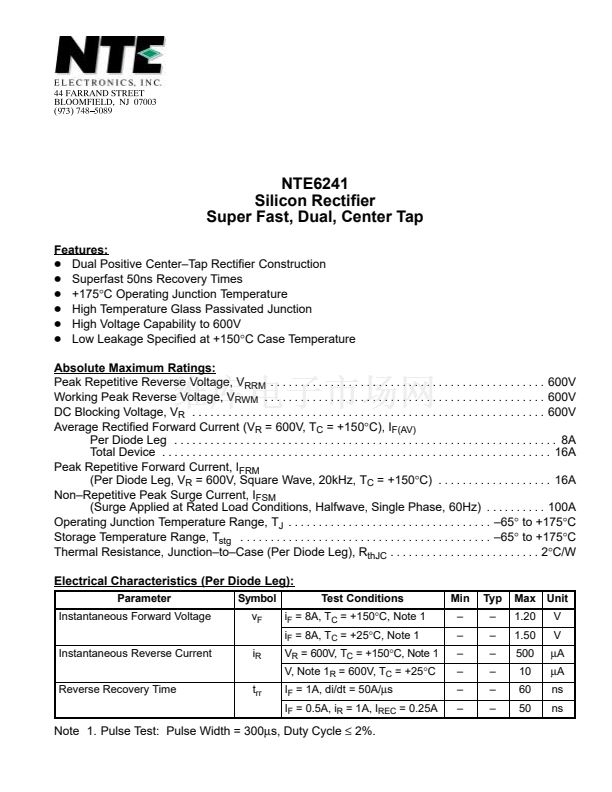

NTE6241
Silicon Rectifier
Super Fast, Dual, Center Tap
Features:
D
Dual Positive Center鈥揟ap Rectifier Construction
D
Superfast 50ns Recovery Times
D
+175擄C Operating Junction Temperature
D
High Temperature Glass Passivated Junction
D
High Voltage Capability to 600V
D
Low Leakage Specified at +150擄C Case Temperature
Absolute Maximum Ratings:
Peak Repetitive Reverse Voltage, V
RRM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V
Working Peak Reverse Voltage, V
RWM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V
DC Blocking Voltage, V
R
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V
Average Rectified Forward Current (V
R
= 600V, T
C
= +150擄C), I
F(AV)
Per Diode Leg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8A
Total Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16A
Peak Repetitive Forward Current, I
FRM
(Per Diode Leg, V
R
= 600V, Square Wave, 20kHz, T
C
= +150擄C) . . . . . . . . . . . . . . . . . . . 16A
Non鈥揜epetitive Peak Surge Current, I
FSM
(Surge Applied at Rated Load Conditions, Halfwave, Single Phase, 60Hz) . . . . . . . . . . 100A
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +175擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +175擄C
Thermal Resistance, Junction鈥搕o鈥揅ase (Per Diode Leg), R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . 2擄C/W
Electrical Characteristics (Per Diode Leg):
Parameter
Instantaneous Forward Voltage
Instantaneous Reverse Current
Reverse Recovery Time
Symbol
v
F
i
R
t
rr
Test Conditions
i
F
= 8A, T
C
= +150擄C, Note 1
i
F
= 8A, T
C
= +25擄C, Note 1
V
R
= 600V, T
C
= +150擄C, Note 1
V, Note 1
R
= 600V, T
C
= +25擄C
I
F
= 1A, di/dt = 50A/碌s
I
F
= 0.5A, i
R
= 1A, I
REC
= 0.25A
Min
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Typ
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Max
1.20
1.50
500
10
60
50
Unit
V
V
碌A(chǔ)
碌A(chǔ)
ns
ns
Note 1. Pulse Test: Pulse Width = 300碌s, Duty Cycle
