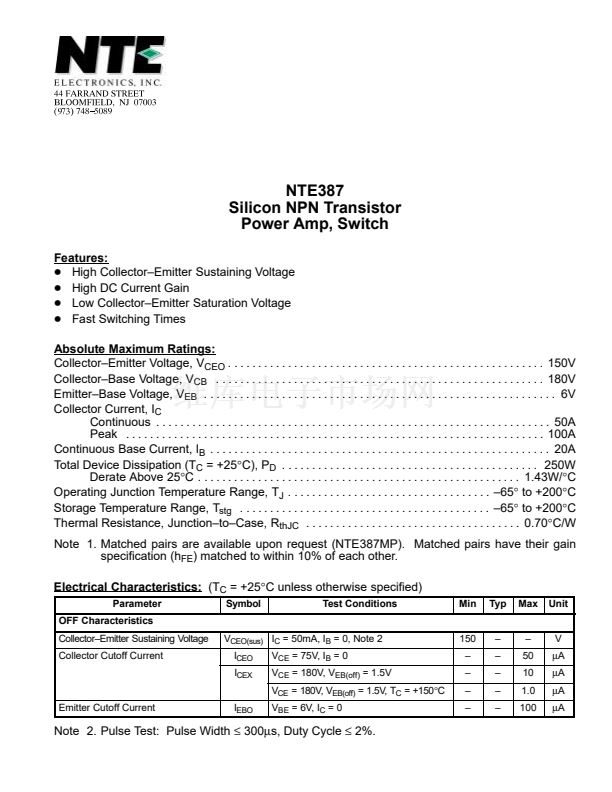

NTE387
Silicon NPN Transistor
Power Amp, Switch
Features:
D
High Collector鈥揈mitter Sustaining Voltage
D
High DC Current Gain
D
Low Collector鈥揈mitter Saturation Voltage
D
Fast Switching Times
Absolute Maximum Ratings:
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150V
Collector鈥揃ase Voltage, V
CB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180V
Emitter鈥揃ase Voltage, V
EB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V
Collector Current, I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50A
Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100A
Continuous Base Current, I
B
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20A
Total Device Dissipation (T
C
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250W
Derate Above 25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.43W/擄C
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +200擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +200擄C
Thermal Resistance, Junction鈥搕o鈥揅ase, R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.70擄C/W
Note 1. Matched pairs are available upon request (NTE387MP). Matched pairs have their gain
specification (h
FE
) matched to within 10% of each other.
Electrical Characteristics:
(T
C
= +25擄C unless otherwise specified)
Parameter
OFF Characteristics
Collector鈥揈mitter Sustaining Voltage
Collector Cutoff Current
V
CEO(sus)
I
C
= 50mA, I
B
= 0, Note 2
I
CEO
I
CEX
Emitter Cutoff Current
I
EBO
V
CE
= 75V, I
B
= 0
V
CE
= 180V, V
EB(off)
= 1.5V
V
CE
= 180V, V
EB(off)
= 1.5V, T
C
= +150擄C
V
BE
= 6V, I
C
= 0
150
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
50
10
1.0
100
V
碌A(chǔ)
碌A(chǔ)
碌A(chǔ)
碌A(chǔ)
Symbol
Test Conditions
Min
Typ
Max
Unit
Note 2. Pulse Test: Pulse Width
鈮?/div>
300碌s, Duty Cycle
