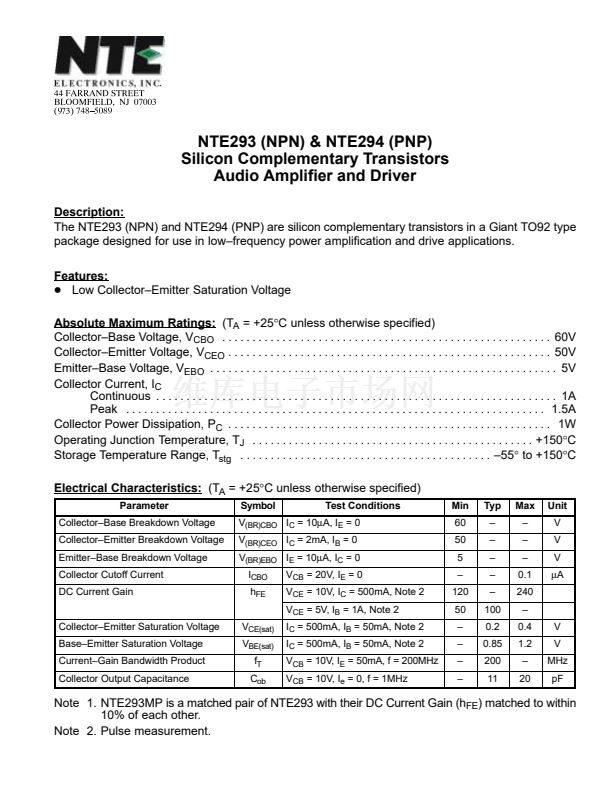

NTE293 (NPN) & NTE294 (PNP)
Silicon Complementary Transistors
Audio Amplifier and Driver
Description:

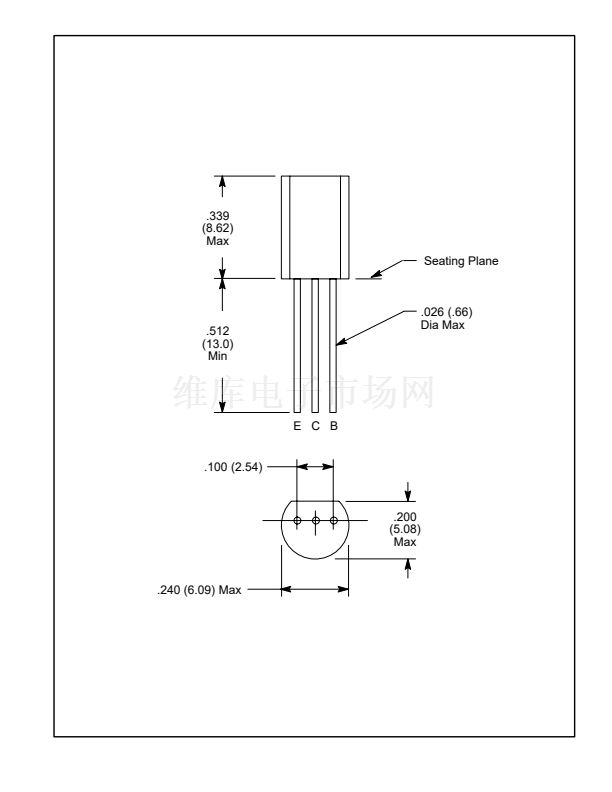

The NTE293 (NPN) and NTE294 (PNP) are silicon complementary transistors in a Giant TO92 type
package designed for use in low鈥揻requency power amplification and drive applications.
Features:
D
Low Collector鈥揈mitter Saturation Voltage
Absolute Maximum Ratings:
(T
A
= +25擄C unless otherwise specified)
Collector鈥揃ase Voltage, V
CBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60V
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current, I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A
Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5A
Collector Power Dissipation, P
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1W
Operating Junction Temperature, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Electrical Characteristics:
(T
A
= +25擄C unless otherwise specified)
Parameter
Collector鈥揃ase Breakdown Voltage
Collector鈥揈mitter Breakdown Voltage
Emitter鈥揃ase Breakdown Voltage
Collector Cutoff Current
DC Current Gain
Symbol
Test Conditions
Min
60
50
5
鈥?/div>
120
50
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Typ
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
100
0.2
0.85
200
11
Max
鈥?/div>
鈥?/div>
鈥?/div>
0.1
240
鈥?/div>
0.4
1.2
鈥?/div>
20
V
V
MHz
pF
Unit
V
V
V
碌A
V
(BR)CBO
I
C
= 10碌A, I
E
= 0
V
(BR)CEO
I
C
= 2mA, I
B
= 0
V
(BR)EBO
I
E
= 10碌A, I
C
= 0
I
CBO
h
FE
V
CE(sat)
V
BE(sat)
f
T
C
ob
V
CB
= 20V, I
E
= 0
V
CE
= 10V, I
C
= 500mA, Note 2
V
CE
= 5V, I
B
= 1A, Note 2
Collector鈥揈mitter Saturation Voltage
Base鈥揈mitter Saturation Voltage
Current鈥揋ain Bandwidth Product
Collector Output Capacitance
I
C
= 500mA, I
B
= 50mA, Note 2
I
C
= 500mA, I
B
= 50mA, Note 2
V
CB
= 10V, I
E
= 50mA, f = 200MHz
V
CB
= 10V, I
e
= 0, f = 1MHz
Note 1. NTE293MP is a matched pair of NTE293 with their DC Current Gain (h
FE
) matched to within
10% of each other.
Note 2. Pulse measurement.
