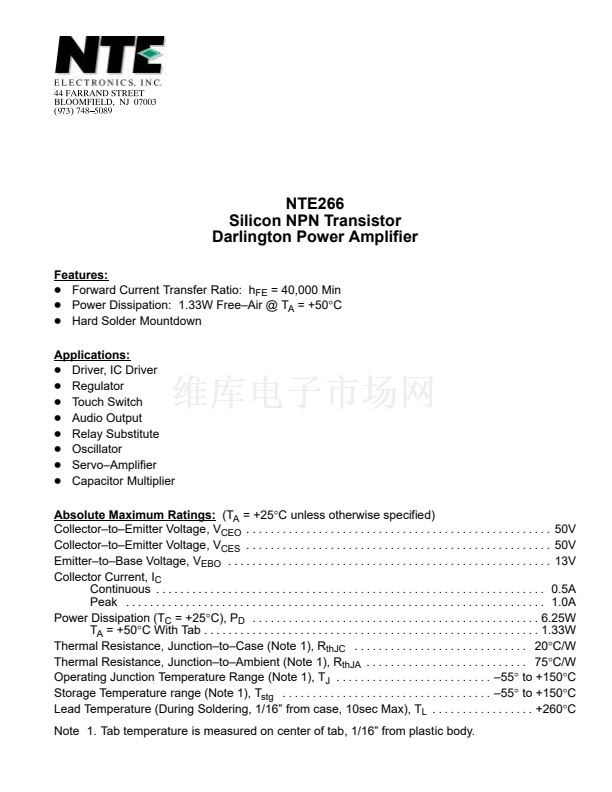

NTE266
Silicon NPN Transistor
Darlington Power Amplifier
Features:
D
Forward Current Transfer Ratio: h
FE
= 40,000 Min
D
Power Dissipation: 1.33W Free鈥揂ir @ T
A
= +50擄C
D
Hard Solder Mountdown
Applications:
D
Driver, IC Driver
D
Regulator
D
Touch Switch
D
Audio Output
D
Relay Substitute
D
Oscillator
D
Servo鈥揂mplifier
D
Capacitor Multiplier
Absolute Maximum Ratings:
(T
A
= +25擄C unless otherwise specified)
Collector鈥搕o鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V
Collector鈥搕o鈥揈mitter Voltage, V
CES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V
Emitter鈥搕o鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13V
Collector Current, I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5A
Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0A
Power Dissipation (T
C
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.25W
T
A
= +50擄C With Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.33W
Thermal Resistance, Junction鈥搕o鈥揅ase (Note 1), R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20擄C/W
Thermal Resistance, Junction鈥搕o鈥揂mbient (Note 1), R
thJA
. . . . . . . . . . . . . . . . . . . . . . . . . . . 75擄C/W
Operating Junction Temperature Range (Note 1), T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Storage Temperature range (Note 1), T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Lead Temperature (During Soldering, 1/16鈥?from case, 10sec Max), T
L
. . . . . . . . . . . . . . . . . +260擄C
Note 1. Tab temperature is measured on center of tab, 1/16鈥?from plastic body.
