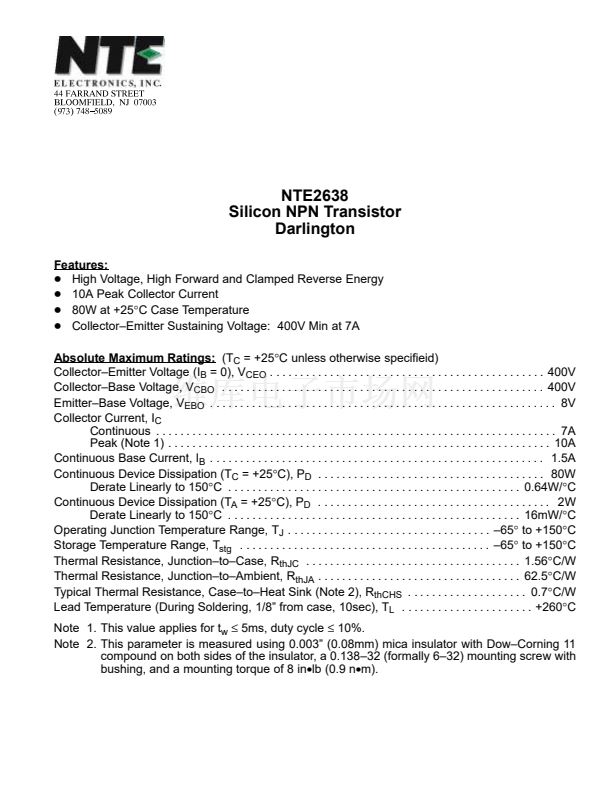

NTE2638
Silicon NPN Transistor
Darlington
Features:
D
High Voltage, High Forward and Clamped Reverse Energy
D
10A Peak Collector Current
D
80W at +25擄C Case Temperature
D
Collector鈥揈mitter Sustaining Voltage: 400V Min at 7A
Absolute Maximum Ratings:
(T
C
= +25擄C unless otherwise specifieid)
Collector鈥揈mitter Voltage (I
B
= 0), V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V
Collector鈥揃ase Voltage, V
CBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8V
Collector Current, I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7A
Peak (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10A
Continuous Base Current, I
B
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5A
Continuous Device Dissipation (T
C
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80W
Derate Linearly to 150擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.64W/擄C
Continuous Device Dissipation (T
A
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2W
Derate Linearly to 150擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16mW/擄C
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Thermal Resistance, Junction鈥搕o鈥揅ase, R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.56擄C/W
Thermal Resistance, Junction鈥搕o鈥揂mbient, R
thJA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62.5擄C/W
Typical Thermal Resistance, Case鈥搕o鈥揌eat Sink (Note 2), R
thCHS
. . . . . . . . . . . . . . . . . . . . 0.7擄C/W
Lead Temperature (During Soldering, 1/8鈥?from case, 10sec), T
L
. . . . . . . . . . . . . . . . . . . . . . +260擄C
Note 1. This value applies for t
w
鈮?/div>
5ms, duty cycle
鈮?/div>
10%.
Note 2. This parameter is measured using 0.003鈥?(0.08mm) mica insulator with Dow鈥揅orning 11
compound on both sides of the insulator, a 0.138鈥?2 (formally 6鈥?2) mounting screw with
bushing, and a mounting torque of 8 in鈥b (0.9 n鈥).

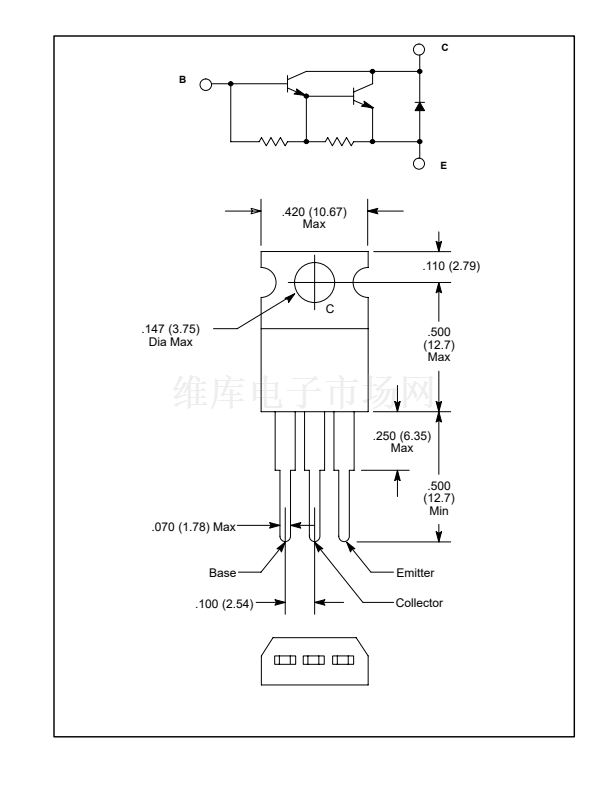

1
2
3
