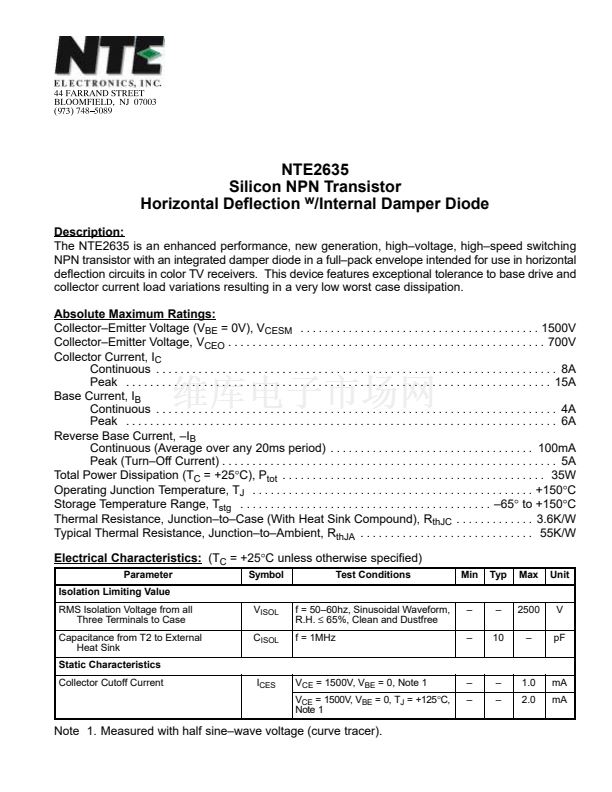

NTE2635
Silicon NPN Transistor
Horizontal Deflection
w
/Internal Damper Diode
Description:
The NTE2635 is an enhanced performance, new generation, high鈥搗oltage, high鈥搒peed switching
NPN transistor with an integrated damper diode in a full鈥損ack envelope intended for use in horizontal
deflection circuits in color TV receivers. This device features exceptional tolerance to base drive and
collector current load variations resulting in a very low worst case dissipation.
Absolute Maximum Ratings:
Collector鈥揈mitter Voltage (V
BE
= 0V), V
CESM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500V
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700V
Collector Current, I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8A
Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15A
Base Current, I
B
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4A
Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6A
Reverse Base Current, 鈥揑
B
Continuous (Average over any 20ms period) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
Peak (Turn鈥揙ff Current) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5A
Total Power Dissipation (T
C
= +25擄C), P
tot
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35W
Operating Junction Temperature, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Thermal Resistance, Junction鈥搕o鈥揅ase (With Heat Sink Compound), R
thJC
. . . . . . . . . . . . . 3.6K/W
Typical Thermal Resistance, Junction鈥搕o鈥揂mbient, R
thJA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55K/W
Electrical Characteristics:
(T
C
= +25擄C unless otherwise specified)
Parameter
Isolation Limiting Value
RMS Isolation Voltage from all
Three Terminals to Case
Capacitance from T2 to External
Heat Sink
Static Characteristics
Collector Cutoff Current
I
CES
V
CE
= 1500V, V
BE
= 0, Note 1
V
CE
= 1500V, V
BE
= 0, T
J
= +125擄C,
Note 1
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
1.0
2.0
mA
mA
V
ISOL
C
ISOL
f = 50鈥?0hz, Sinusoidal Waveform,
R.H.
鈮?/div>
65%, Clean and Dustfree
f = 1MHz
鈥?/div>
鈥?/div>
鈥?/div>
10
2500
鈥?/div>
V
pF
Symbol
Test Conditions
Min
Typ
Max
Unit
Note 1. Measured with half sine鈥搘ave voltage (curve tracer).
