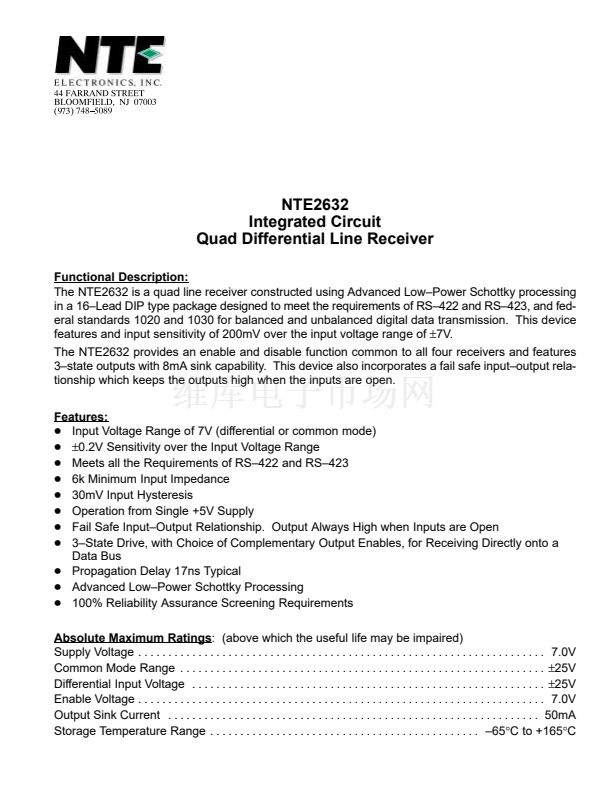

NTE2632
Integrated Circuit
Quad Differential Line Receiver
Functional Description:
The NTE2632 is a quad line receiver constructed using Advanced Low鈥揚ower Schottky processing

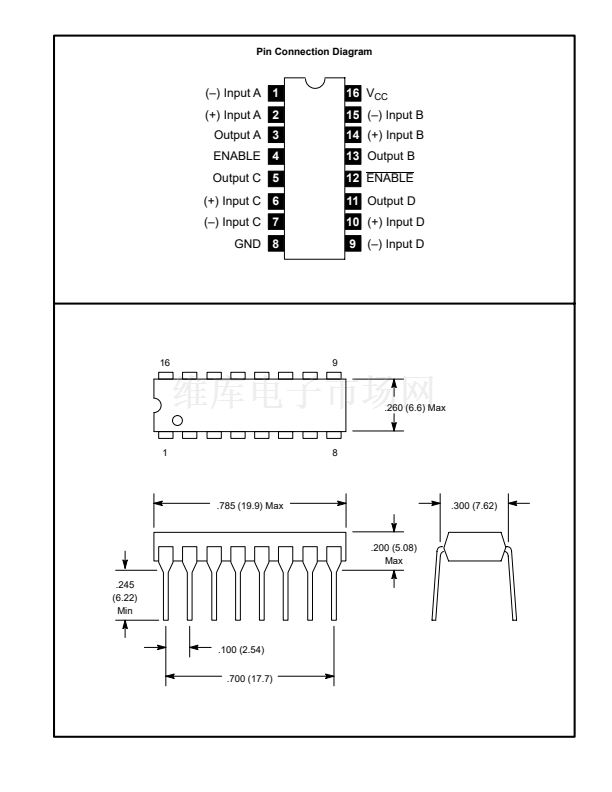

in a 16鈥揕ead DIP type package designed to meet the requirements of RS鈥?22 and RS鈥?23, and fed-
eral standards 1020 and 1030 for balanced and unbalanced digital data transmission. This device
features and input sensitivity of 200mV over the input voltage range of
鹵7V.
The NTE2632 provides an enable and disable function common to all four receivers and features
3鈥搒tate outputs with 8mA sink capability. This device also incorporates a fail safe input鈥搊utput rela-
tionship which keeps the outputs high when the inputs are open.
Features:
D
Input Voltage Range of 7V (differential or common mode)
D
鹵0.2V
Sensitivity over the Input Voltage Range
D
Meets all the Requirements of RS鈥?22 and RS鈥?23
D
6k Minimum Input Impedance
D
30mV Input Hysteresis
D
Operation from Single +5V Supply
D
Fail Safe Input鈥揙utput Relationship. Output Always High when Inputs are Open
D
3鈥揝tate Drive, with Choice of Complementary Output Enables, for Receiving Directly onto a
Data Bus
D
Propagation Delay 17ns Typical
D
Advanced Low鈥揚ower Schottky Processing
D
100% Reliability Assurance Screening Requirements
Absolute Maximum Ratings:
(above which the useful life may be impaired)
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0V
Common Mode Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
鹵25V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
鹵25V
Enable Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0V
Output Sink Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄C to +165擄C
