NTE249 (NPN) & NTE250 (PNP)
Silicon Complementary Transistors
Darlington Power Amplifier
Description:
The NTE249 (NPN) and NTE250 (PNP) are silicon complementary Darlington transistors in a TO3
type case designed for use as output devices in complementary general purpose amplifier applications.
Features:
D
High DC Current Gain: h
FE
= 3500 Typ @ I
C
= 10A
D
Monolithic Construction with Built鈥揑n Base鈥揈mitter Shunt Resistors
Absolute Maximum Ratings:
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100V
Collector鈥揃ase Voltage, V
CB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100V
Emitter鈥揃ase Voltage, V
EB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current, I
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16A
Base Current, I
B
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mA
Total Power Dissipation (T
C
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150W
Derate Above 25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.857W/擄C
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +200擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +200擄C
Thermal Resistance, Junction鈥搕o鈥揅ase, R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.17擄C/W

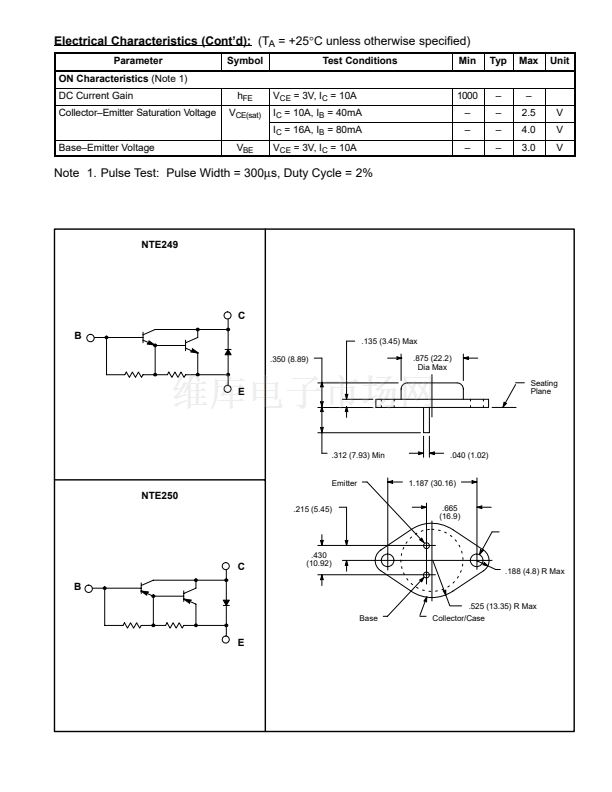

Electrical Characteristics:
(T
C
= +25擄C unless otherwise specified)
Parameter
OFF Characteristics
Collector鈥揈mitter Breakdown Voltage
Collector鈥揈mitter Leakage Current
V
(BR)CEO
I
C
= 100mA, I
B
= 0, Note 1
I
CEO
I
CER
Emitter Cutoff Current
I
EBO
V
CE
= 50V, I
E
= 0
V
CB
= 100V, R
BE
= 1k鈩?/div>
V
CB
= 100V, R
BE
= 1k鈩? T
A
= +150擄C
V
BE
= 5V, I
C
= 0
100
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
3.0
1.0
5.0
5.0
V
mA
mA
mA
mA
Symbol
Test Conditions
Min
Typ
Max Unit
Note 1. Pulse Test: Pulse Width = 300碌s, Duty Cycle = 2%
