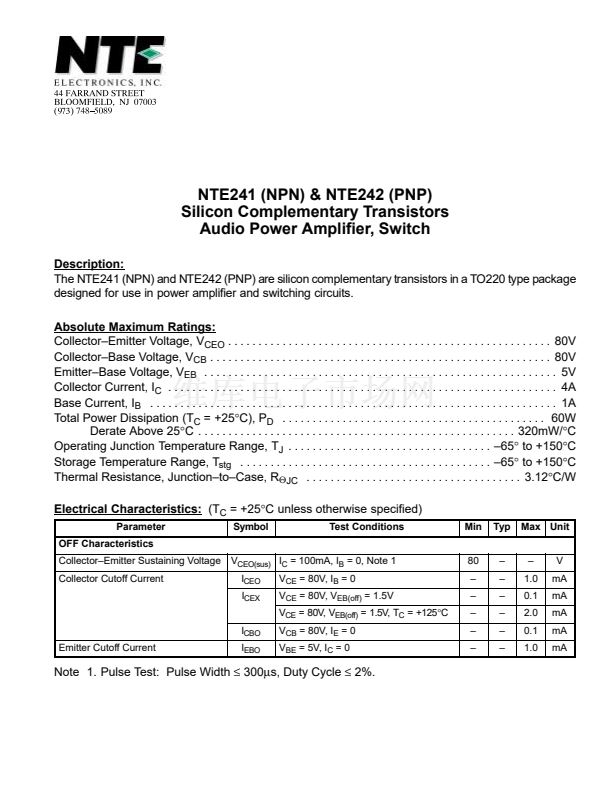

NTE241 (NPN) & NTE242 (PNP)
Silicon Complementary Transistors
Audio Power Amplifier, Switch
Description:
The NTE241 (NPN) and NTE242 (PNP) are silicon complementary transistors in a TO220 type package
designed for use in power amplifier and switching circuits.
Absolute Maximum Ratings:
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V
Collector鈥揃ase Voltage, V
CB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V
Emitter鈥揃ase Voltage, V
EB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current, I
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4A
Base Current, I
B
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A
Total Power Dissipation (T
C
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60W
Derate Above 25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320mW/擄C
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Thermal Resistance, Junction鈥搕o鈥揅ase, R
螛JC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.12擄C/W
Electrical Characteristics:
(T
C
= +25擄C unless otherwise specified)
Parameter
OFF Characteristics
Collector鈥揈mitter Sustaining Voltage
Collector Cutoff Current
V
CEO(sus)
I
C
= 100mA, I
B
= 0, Note 1
I
CEO
I
CEX
I
CBO
Emitter Cutoff Current
I
EBO
V
CE
= 80V, I
B
= 0
V
CE
= 80V, V
EB(off)
= 1.5V
V
CE
= 80V, V
EB(off)
= 1.5V, T
C
= +125擄C
V
CB
= 80V, I
E
= 0
V
BE
= 5V, I
C
= 0
80
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
1.0
0.1
2.0
0.1
1.0
V
mA
mA
mA
mA
mA
Symbol
Test Conditions
Min
Typ
Max Unit
Note 1. Pulse Test: Pulse Width
鈮?/div>
300碌s, Duty Cycle
