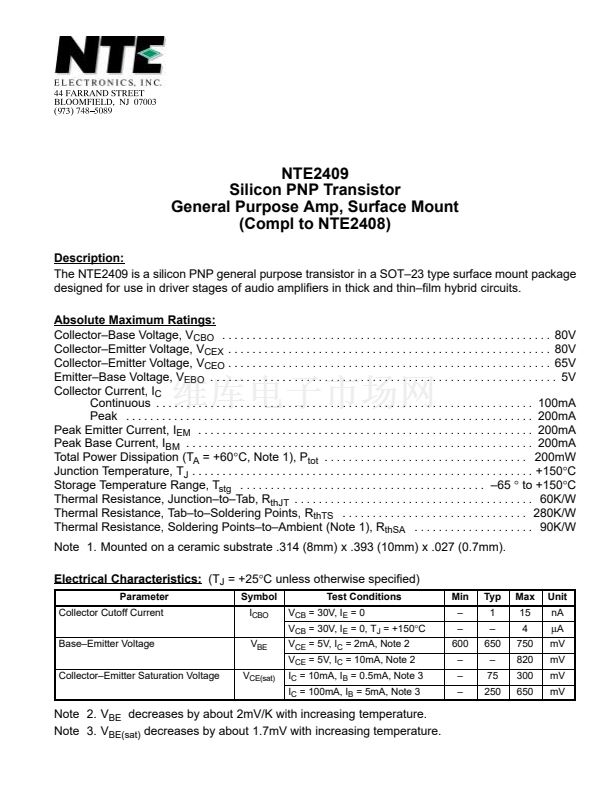

NTE2409
Silicon PNP Transistor
General Purpose Amp, Surface Mount
(Compl to NTE2408)
Description:
The NTE2409 is a silicon PNP general purpose transistor in a SOT鈥?3 type surface mount package
designed for use in driver stages of audio amplifiers in thick and thin鈥揻ilm hybrid circuits.
Absolute Maximum Ratings:
Collector鈥揃ase Voltage, V
CBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V
Collector鈥揈mitter Voltage, V
CEX
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current, I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mA
Peak Emitter Current, I
EM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mA
Peak Base Current, I
BM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mA
Total Power Dissipation (T
A
= +60擄C, Note 1), P
tot
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mW
Junction Temperature, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5
擄
to +150擄C
Thermal Resistance, Junction鈥搕o鈥揟ab, R
thJT
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60K/W
Thermal Resistance, Tab鈥搕o鈥揝oldering Points, R
thTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280K/W
Thermal Resistance, Soldering Points鈥搕o鈥揂mbient (Note 1), R
thSA
. . . . . . . . . . . . . . . . . . . . 90K/W
Note 1. Mounted on a ceramic substrate .314 (8mm) x .393 (10mm) x .027 (0.7mm).
Electrical Characteristics:
(T
J
= +25擄C unless otherwise specified)
Parameter
Collector Cutoff Current
Base鈥揈mitter Voltage
Collector鈥揈mitter Saturation Voltage
Symbol
I
CBO
V
BE
V
CE(sat)
Test Conditions
V
CB
= 30V, I
E
= 0
V
CB
= 30V, I
E
= 0, T
J
= +150擄C
V
CE
= 5V, I
C
= 2mA, Note 2
V
CE
= 5V, I
C
= 10mA, Note 2
I
C
= 10mA, I
B
= 0.5mA, Note 3
I
C
= 100mA, I
B
= 5mA, Note 3
Min
鈥?/div>
鈥?/div>
600
鈥?/div>
鈥?/div>
鈥?/div>
Typ
1
鈥?/div>
650
鈥?/div>
75
250
Max
15
4
750
820
300
650
Unit
nA
碌A(chǔ)
mV
mV
mV
mV
Note 2. V
BE
decreases by about 2mV/K with increasing temperature.

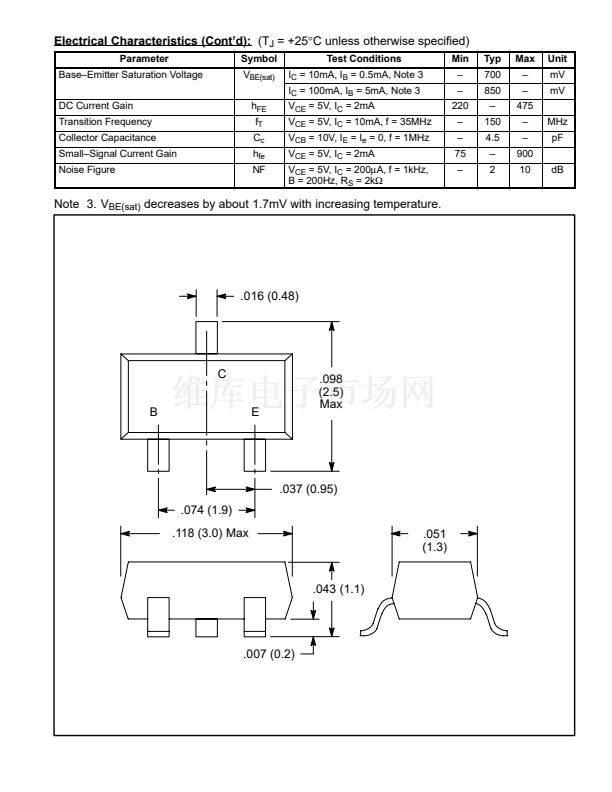

Note 3. V
BE(sat)
decreases by about 1.7mV with increasing temperature.
