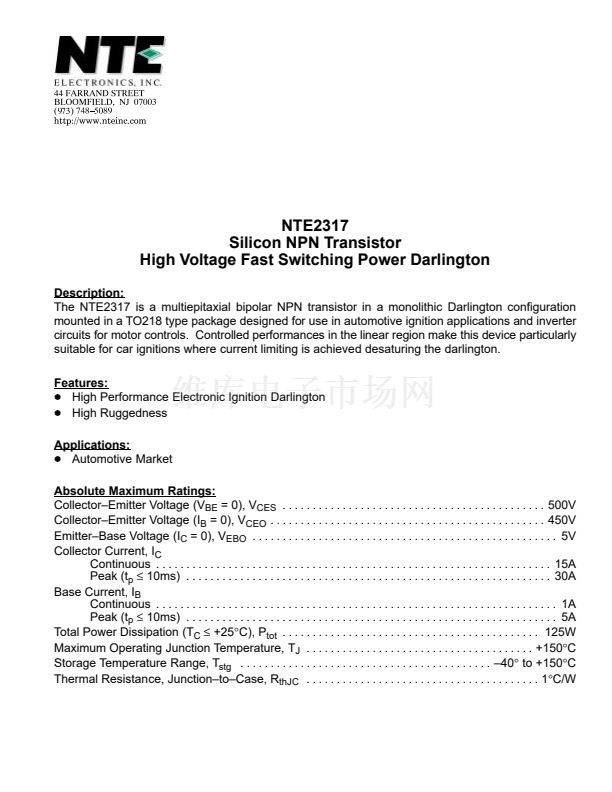

NTE2317
Silicon NPN Transistor
High Voltage Fast Switching Power Darlington
Description:
The NTE2317 is a multiepitaxial bipolar NPN transistor in a monolithic Darlington configuration
mounted in a TO218 type package designed for use in automotive ignition applications and inverter
circuits for motor controls. Controlled performances in the linear region make this device particularly
suitable for car ignitions where current limiting is achieved desaturing the darlington.
Features:
D
High Performance Electronic Ignition Darlington
D
High Ruggedness
Applications:
D
Automotive Market
Absolute Maximum Ratings:
Collector鈥揈mitter Voltage (V
BE
= 0), V
CES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500V
Collector鈥揈mitter Voltage (I
B
= 0), V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450V
Emitter鈥揃ase Voltage (I
C
= 0), V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current, I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15A
Peak (t
p
鈮?/div>
10ms) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30A
Base Current, I
B
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A
Peak (t
p
鈮?/div>
10ms) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5A
Total Power Dissipation (T
C
鈮?/div>
+25擄C), P
tot
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125W
Maximum Operating Junction Temperature, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0擄 to +150擄C
Thermal Resistance, Junction鈥搕o鈥揅ase, R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1擄C/W
