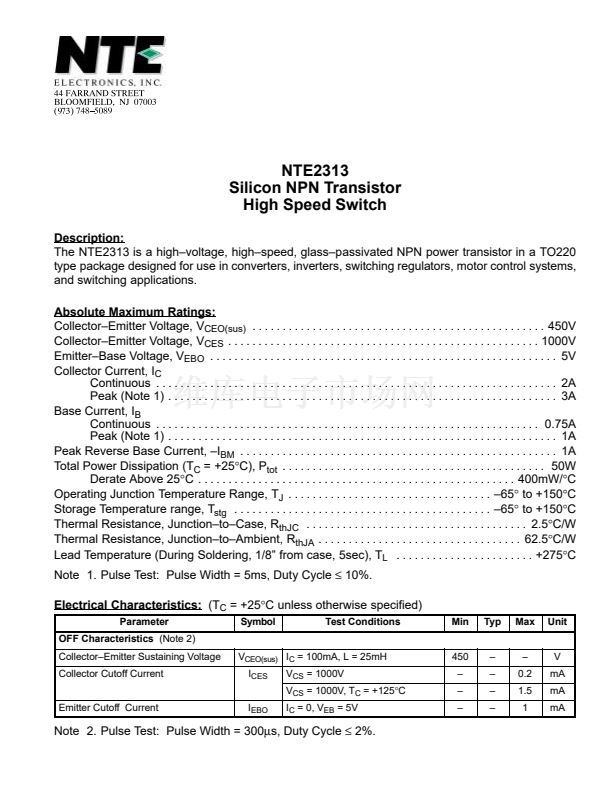

NTE2313
Silicon NPN Transistor
High Speed Switch
Description:
The NTE2313 is a high鈥搗oltage, high鈥搒peed, glass鈥損assivated NPN power transistor in a TO220
type package designed for use in converters, inverters, switching regulators, motor control systems,
and switching applications.
Absolute Maximum Ratings:
Collector鈥揈mitter Voltage, V
CEO(sus)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450V
Collector鈥揈mitter Voltage, V
CES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current, I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2A
Peak (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3A
Base Current, I
B
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.75A
Peak (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A
Peak Reverse Base Current, 鈥揑
BM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A
Total Power Dissipation (T
C
= +25擄C), P
tot
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50W
Derate Above 25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400mW/擄C
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Storage Temperature range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Thermal Resistance, Junction鈥搕o鈥揅ase, R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5擄C/W
Thermal Resistance, Junction鈥搕o鈥揂mbient, R
thJA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62.5擄C/W
Lead Temperature (During Soldering, 1/8鈥?from case, 5sec), T
L
. . . . . . . . . . . . . . . . . . . . . . . +275擄C
Note 1. Pulse Test: Pulse Width = 5ms, Duty Cycle
鈮?/div>
10%.
Electrical Characteristics:
(T
C
= +25擄C unless otherwise specified)
Parameter
OFF Characteristics
(Note 2)
Collector鈥揈mitter Sustaining Voltage
Collector Cutoff Current
V
CEO(sus)
I
C
= 100mA, L = 25mH
I
CES
I
EBO
V
CS
= 1000V
V
CS
= 1000V, T
C
= +125擄C
Emitter Cutoff Current
I
C
= 0, V
EB
= 5V
450
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
0.2
1.5
1
V
mA
mA
mA
Symbol
Test Conditions
Min
Typ
Max
Unit
Note 2. Pulse Test: Pulse Width = 300碌s, Duty Cycle
