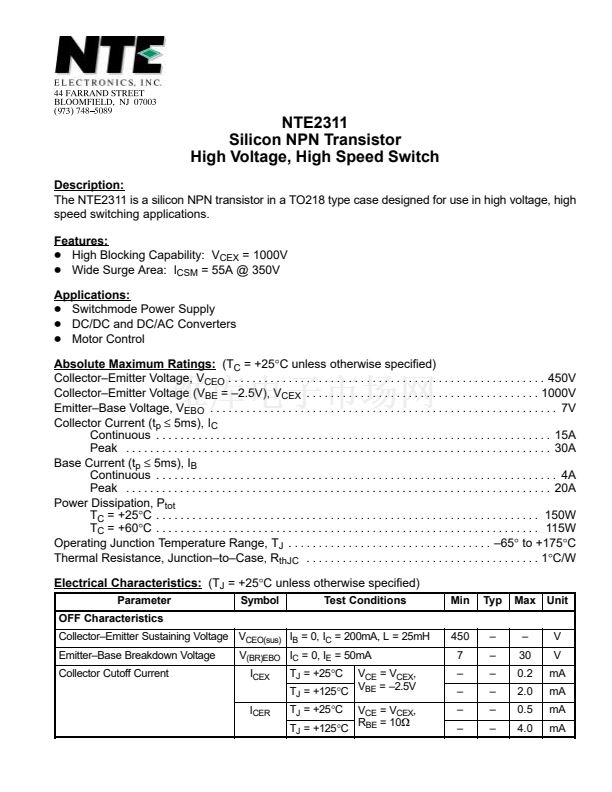

NTE2311
Silicon NPN Transistor
High Voltage, High Speed Switch
Description:
The NTE2311 is a silicon NPN transistor in a TO218 type case designed for use in high voltage, high
speed switching applications.
Features:
D
High Blocking Capability: V
CEX
= 1000V
D
Wide Surge Area: I
CSM
= 55A @ 350V
Applications:
D
Switchmode Power Supply
D
DC/DC and DC/AC Converters
D
Motor Control
Absolute Maximum Ratings:
(T
C
= +25擄C unless otherwise specified)
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450V
Collector鈥揈mitter Voltage (V
BE
= 鈥?.5V), V
CEX
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Collector Current (t
p
鈮?/div>
5ms), I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15A
Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30A
Base Current (t
p
鈮?/div>
5ms), I
B
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4A
Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20A
Power Dissipation, P
tot
T
C
= +25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150W
T
C
= +60擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115W
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +175擄C
Thermal Resistance, Junction鈥搕o鈥揅ase, R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1擄C/W
Electrical Characteristics:
(T
J
= +25擄C unless otherwise specified)
Parameter
OFF Characteristics
Collector鈥揈mitter Sustaining Voltage V
CEO(sus)
I
B
= 0, I
C
= 200mA, L = 25mH
Emitter鈥揃ase Breakdown Voltage
Collector Cutoff Current
V
(BR)EBO
I
C
= 0, I
E
= 50mA
I
CEX
I
CER
T
J
= +25擄C
T
J
= +125擄C
T
J
= +25擄C
T
J
= +125擄C
V
CE
= V
CEX
,
V
BE
= 鈥?.5V
V
CE
= V
CEX
,
R
BE
= 10鈩?/div>
鈩?/div>
450
7
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
30
0.2
2.0
0.5
4.0
V
V
mA
mA
mA
mA
Symbol
Test Conditions
Min
Typ
Max
Unit
