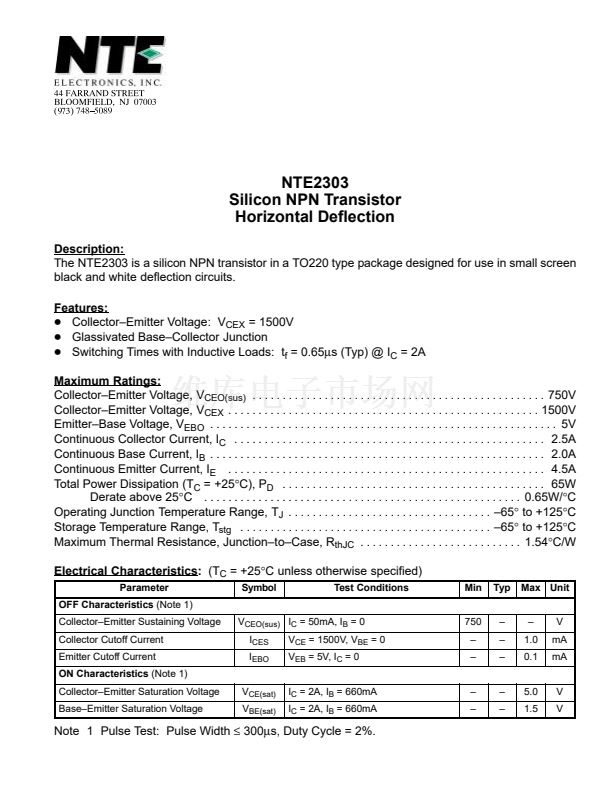

NTE2303
Silicon NPN Transistor
Horizontal Deflection
Description:
The NTE2303 is a silicon NPN transistor in a TO220 type package designed for use in small screen
black and white deflection circuits.
Features:
D
Collector鈥揈mitter Voltage: V
CEX
= 1500V
D
Glassivated Base鈥揅ollector Junction
D
Switching Times with Inductive Loads: t
f
= 0.65碌s (Typ) @ I
C
= 2A
Maximum Ratings:
Collector鈥揈mitter Voltage, V
CEO(sus)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750V
Collector鈥揈mitter Voltage, V
CEX
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Continuous Collector Current, I
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5A
Continuous Base Current, I
B
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0A
Continuous Emitter Current, I
E
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5A
Total Power Dissipation (T
C
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65W
Derate above 25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.65W/擄C
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +125擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +125擄C
Maximum Thermal Resistance, Junction鈥搕o鈥揅ase, R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . 1.54擄C/W
Electrical Characteristics:
(T
C
= +25擄C unless otherwise specified)
Parameter
OFF Characteristics
(Note 1)
Collector鈥揈mitter Sustaining Voltage
Collector Cutoff Current
Emitter Cutoff Current
ON Characteristics
(Note 1)
Collector鈥揈mitter Saturation Voltage
Base鈥揈mitter Saturation Voltage
V
CE(sat)
V
BE(sat)
I
C
= 2A, I
B
= 660mA
I
C
= 2A, I
B
= 660mA
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
5.0
1.5
V
V
V
CEO(sus)
I
C
= 50mA, I
B
= 0
I
CES
I
EBO
V
CE
= 1500V, V
BE
= 0
V
EB
= 5V, I
C
= 0
750
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
1.0
0.1
V
mA
mA
Symbol
Test Conditions
Min
Typ
Max Unit
Note 1 Pulse Test: Pulse Width
鈮?/div>
300碌s, Duty Cycle = 2%.
