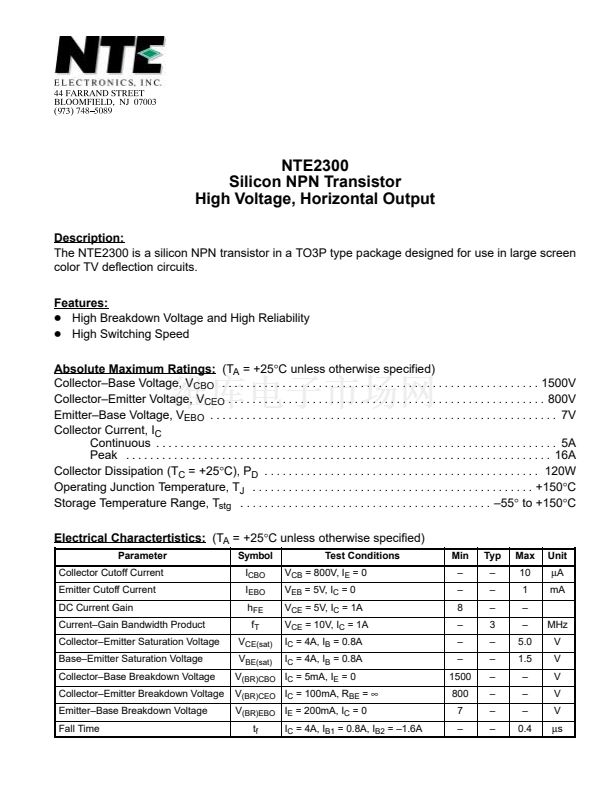

NTE2300
Silicon NPN Transistor
High Voltage, Horizontal Output
Description:

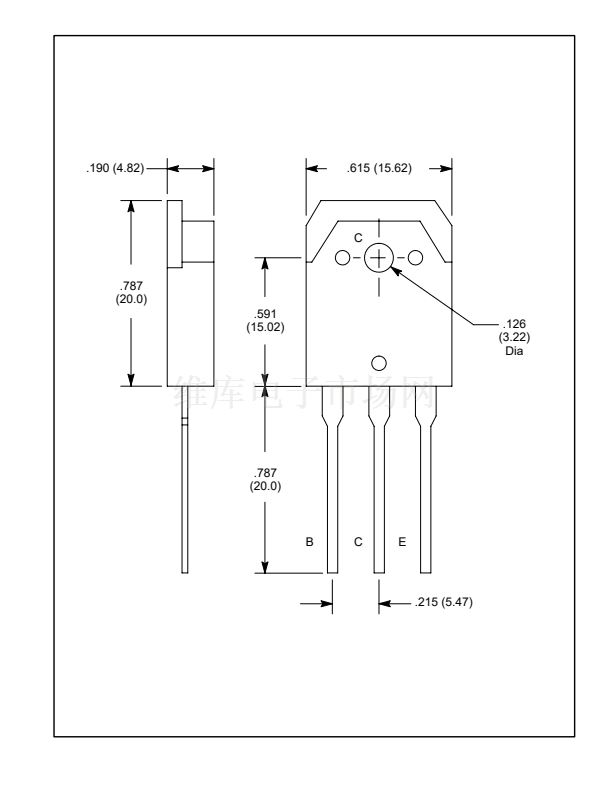

The NTE2300 is a silicon NPN transistor in a TO3P type package designed for use in large screen
color TV deflection circuits.
Features:
D
High Breakdown Voltage and High Reliability
D
High Switching Speed
Absolute Maximum Ratings:
(T
A
= +25擄C unless otherwise specified)
Collector鈥揃ase Voltage, V
CBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500V
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Collector Current, I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5A
Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16A
Collector Dissipation (T
C
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120W
Operating Junction Temperature, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Electrical Charactertistics:
(T
A
= +25擄C unless otherwise specified)
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Current鈥揋ain Bandwidth Product
Collector鈥揈mitter Saturation Voltage
Base鈥揈mitter Saturation Voltage
Collector鈥揃ase Breakdown Voltage
Collector鈥揈mitter Breakdown Voltage
Emitter鈥揃ase Breakdown Voltage
Fall Time
Symbol
I
CBO
I
EBO
h
FE
f
T
V
CE(sat)
V
BE(sat)
Test Conditions
V
CB
= 800V, I
E
= 0
V
EB
= 5V, I
C
= 0
V
CE
= 5V, I
C
= 1A
V
CE
= 10V, I
C
= 1A
I
C
= 4A, I
B
= 0.8A
I
C
= 4A, I
B
= 0.8A
Min
鈥?/div>
鈥?/div>
8
鈥?/div>
鈥?/div>
鈥?/div>
1500
800
7
鈥?/div>
Typ
鈥?/div>
鈥?/div>
鈥?/div>
3
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Max
10
1
鈥?/div>
鈥?/div>
5.0
1.5
鈥?/div>
鈥?/div>
鈥?/div>
0.4
MHz
V
V
V
V
V
碌s
Unit
碌A(chǔ)
mA
V
(BR)CBO
I
C
= 5mA, I
E
= 0
V
(BR)CEO
I
C
= 100mA, R
BE
=
鈭?/div>
V
(BR)EBO
I
E
= 200mA, I
C
= 0
t
f
I
C
= 4A, I
B1
= 0.8A, I
B2
= 鈥?.6A
