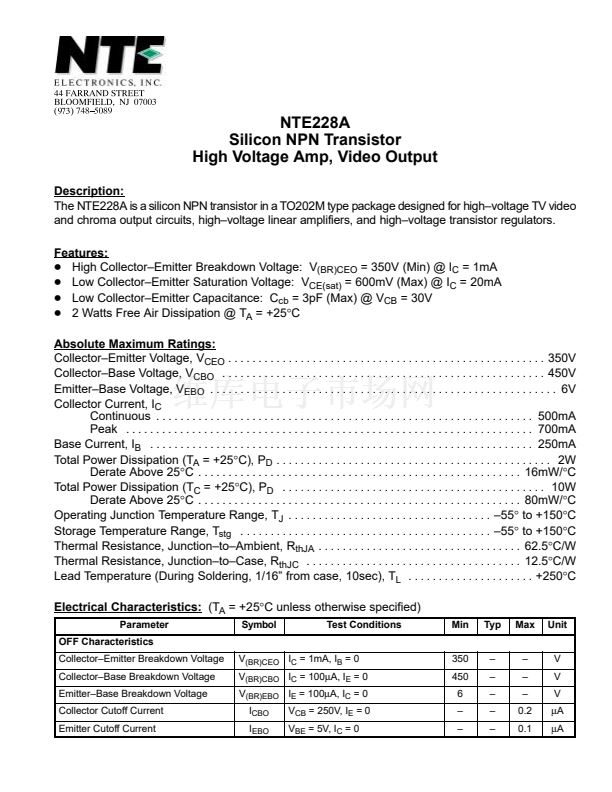

NTE228A
Silicon NPN Transistor
High Voltage Amp, Video Output
Description:
The NTE228A is a silicon NPN transistor in a TO202M type package designed for high鈥搗oltage TV video
and chroma output circuits, high鈥搗oltage linear amplifiers, and high鈥搗oltage transistor regulators.
Features:
D
High Collector鈥揈mitter Breakdown Voltage: V
(BR)CEO
= 350V (Min) @ I
C
= 1mA
D
Low Collector鈥揈mitter Saturation Voltage: V
CE(sat)
= 600mV (Max) @ I
C
= 20mA
D
Low Collector鈥揈mitter Capacitance: C
cb
= 3pF (Max) @ V
CB
= 30V
D
2 Watts Free Air Dissipation @ T
A
= +25擄C
Absolute Maximum Ratings:
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350V
Collector鈥揃ase Voltage, V
CBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V
Collector Current, I
C
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mA
Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700mA
Base Current, I
B
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250mA
Total Power Dissipation (T
A
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2W
Derate Above 25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16mW/擄C
Total Power Dissipation (T
C
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10W
Derate Above 25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80mW/擄C
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Thermal Resistance, Junction鈥搕o鈥揂mbient, R
thJA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62.5擄C/W
Thermal Resistance, Junction鈥搕o鈥揅ase, R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.5擄C/W
Lead Temperature (During Soldering, 1/16鈥?from case, 10sec), T
L
. . . . . . . . . . . . . . . . . . . . . +250擄C
Electrical Characteristics:
(T
A
= +25擄C unless otherwise specified)
Parameter
OFF Characteristics
Collector鈥揈mitter Breakdown Voltage
Collector鈥揃ase Breakdown Voltage
Emitter鈥揃ase Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
V
(BR)CEO
I
C
= 1mA, I
B
= 0
V
(BR)CBO
I
C
= 100碌A(chǔ), I
E
= 0
V
(BR)EBO
I
E
= 100碌A(chǔ), I
C
= 0
I
CBO
I
EBO
V
CB
= 250V, I
E
= 0
V
BE
= 5V, I
C
= 0
350
450
6
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
0.2
0.1
V
V
V
碌A(chǔ)
碌A(chǔ)
Symbol
Test Conditions
Min
Typ
Max
Unit
