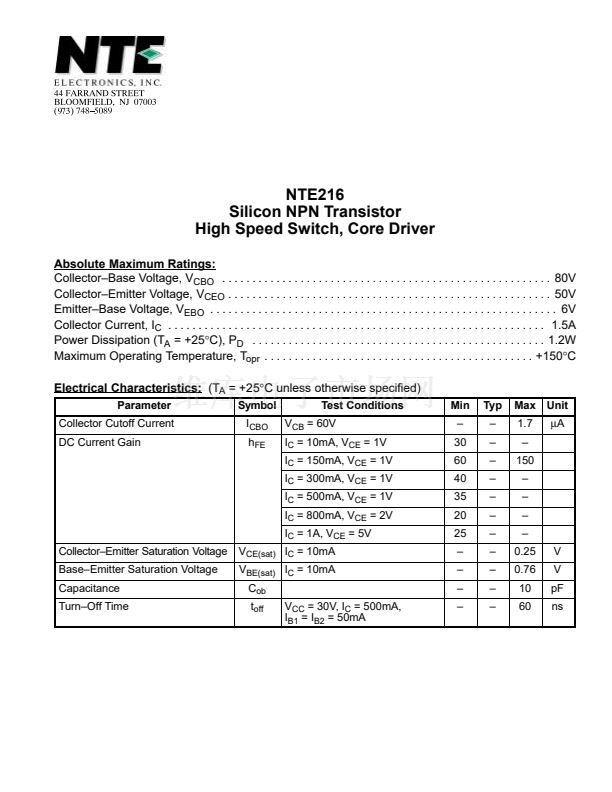

NTE216
Silicon NPN Transistor
High Speed Switch, Core Driver
Absolute Maximum Ratings:
Collector鈥揃ase Voltage, V
CBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V
Collector Current, I
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5A
Power Dissipation (T
A
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2W
Maximum Operating Temperature, T
opr
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150擄C
Electrical Characteristics:
(T
A
= +25擄C unless otherwise specified)
Parameter
Collector Cutoff Current
DC Current Gain
Symbol
I
CBO
h
FE
Test Conditions
V
CB
= 60V
I
C
= 10mA, V
CE
= 1V
I
C
= 150mA, V
CE
= 1V
I
C
= 300mA, V
CE
= 1V
I
C
= 500mA, V
CE
= 1V
I
C
= 800mA, V
CE
= 2V
I
C
= 1A, V
CE
= 5V
Collector鈥揈mitter Saturation Voltage
Base鈥揈mitter Saturation Voltage
Capacitance
Turn鈥揙ff Time
V
CE(sat)
I
C
= 10mA
V
BE(sat)
I
C
= 10mA
C
ob
t
off
V
CC
= 30V, I
C
= 500mA,
I
B1
= I
B2
= 50mA
Min
鈥?/div>
30
60
40
35
20
25
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Typ
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Max
1.7
鈥?/div>
150
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
0.25
0.76
10
60
V
V
pF
ns
Unit
碌A(chǔ)
